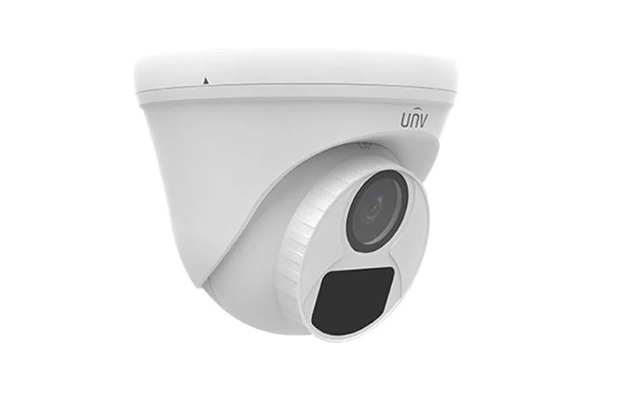

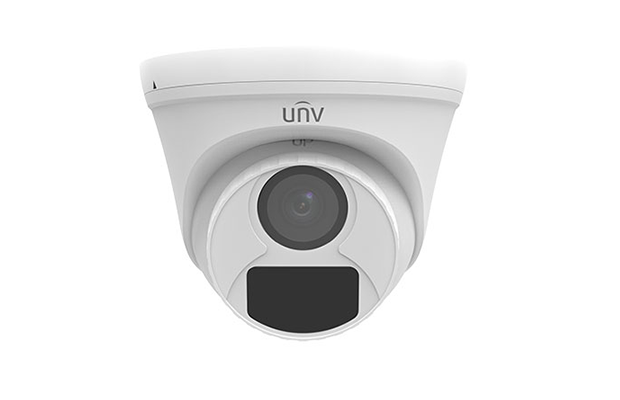

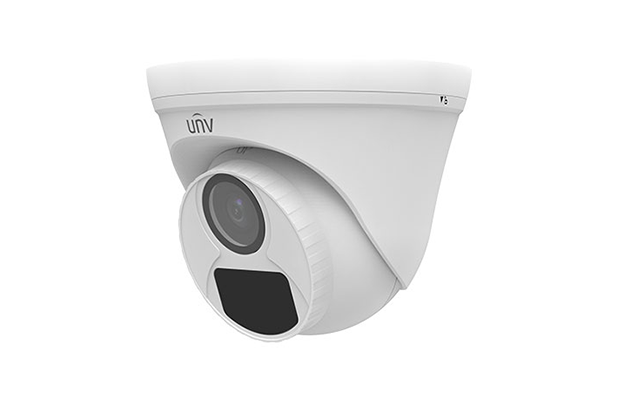

Uniview UAC-T112-F28 2MP HD Fixed IR Turret Analog Camera

~~$ 28.00~~ $ 25.00

Part Number: UAC-T112-F28
2MP high quality image
TVI/AHD/CVI/CVBS
IR-cut filter with auto switch (ICR)
Supports 180° horizontal flip, 180° vertical flip
OSD configuration menu, easy to operate
IP67 waterproof and dustproof design, high reliability
OSD configuration menu in 11 languages
3-Axis
Warranty: 1-year on Part.

Order Now

Specification

Part Number: UAC-T112-F28
Camera
Max Resolution: 2 MP
Sensor Size: 1/3.0" CMOS
Min. Illumination: 0.02 lux (F2.0, AGC ON), 0 lux (IR on)
Lens
Focus: 2.8 mm, 4.0 mm
Lens Mount: M12
Angle of View (H): 90.5°, 80.2°
Angle of View (V): 49.6°, 40.7°
Angle of View (D): 109.5°, 90.5°
Illuminator
Illuminator Number: One IR illuminator
Illumination Distance: 20m
Lifetime: ≥ 60000 hours
Video
Resolution: 1080P: 1920(H)×1080(V), 720P: 1280(H) ×720(V)
Frame Rate: TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps
AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
CVBS: PAL, NTSC
Shutter Time: PAL: 1/25s-1/50000s，NTSC: 1/30s-1/50000s
Exposure Mode: Four modes: Global (default), BLC, HLC, DWDR
Day/Night: Three modes: Auto (default), Day, Night
Digital Noise Reduction: 2D
White Balance: Two modes: Auto (default), Manual
WDR: DWDR
Smart IR: Support
Flip: Supports 180°horizontal flip, 180°vertical flip
Interface
Power Interface: 5.5 mm Power Interface
Video Output: BNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature: -30°C to 60°C (-22°F to 140°F)
Humidity: ≤ 95% RH (non-condensing)
Surge Protection: 4 KV for power, 4 KV for video output interfaces
General
Power: DC 12 V ± 25%
Power Consumption: MAX 2.88W
Mount: Wall Mount, Pole Mount, Corner Mount, Pendant Mount
Dimensions: Φ118mm*96mm (diameter*height)
Material: Plastic
OSD Menu Language: 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Certification
EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
Safety: CE-LVD (EN 62368-1)
Environment: CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Protection: IP67 (IEC 60529)
Weight: 182g(0.401lb).
