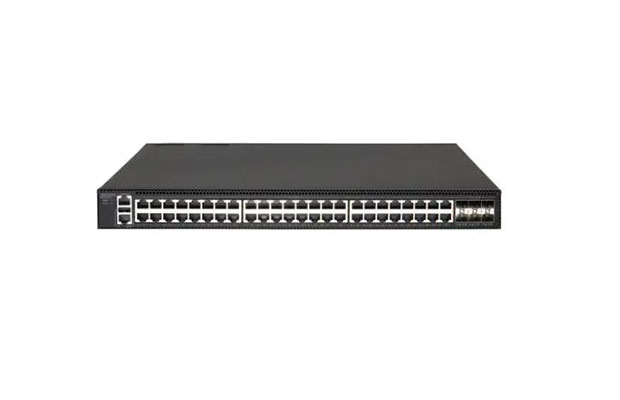

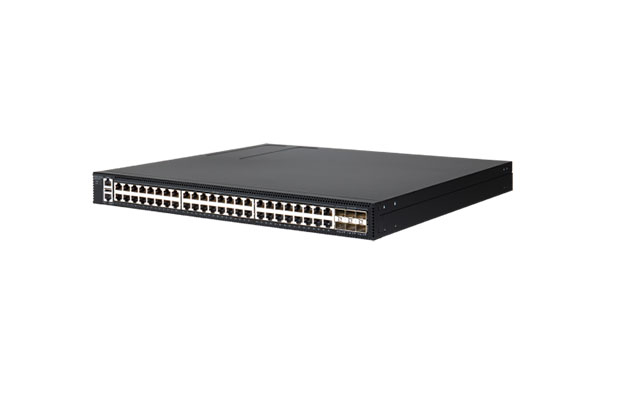

EdgeCore ECS4150-54P 48ports Gigabit Ethernet Managed PoE Switch

$ 2,280.00 $ 2,235.00
  • Part Number: ECS4150-54P
  • 48 x RJ-45 10/100/1000 Ports
  • 48 x PoE++ Ports
  • 6 x 25G SFP28 Uplink Ports
  • 1 x Console Port
  • 1 x USB Port
  • af/at/bt 740W
  • 396 Gbps Switching Capacity
  • Support ecCLOUD
  • Warranty: 1-Year on part.
Order Now

Specification

  • Part Number: ECS4150-54P
  • 48 x RJ-45 10/100/1000 Ports
  • 48 x PoE++ Ports
  • 6 x 25G SFP28 Uplink Ports
  • 1 x Console Port
  • 1 x USB Port
  • L2+/L3 Lite Gigabit Ethernet PoE Switch
  • Support ecCLOUD
  • PoE Power Budget: 740W (af/at/bt)
  • Auto disable after exceeding power budget
  • Dynamic power allocation
  • Switching Capacity: 396 Gbps
  • Forwarding Rate: 295 Mbps
  • NAND Flash Memory: 256 MB
  • DRAM: 1 GB
  • MAC Address Table: 32 K
  • Jumbo Frames: 10 KB
  • Auto-negotiation, Auto-MDI/MDIX
  • Max System Power Consumption: 835W
  • Power input: – 100 to 240 VAC, 50/60 Hz
  • Rack Space: 19″
  • Dimension (WxDxH): 44.2 cm x 42 cm x 4.36 cm
  • Weight: 5.5 kg.
