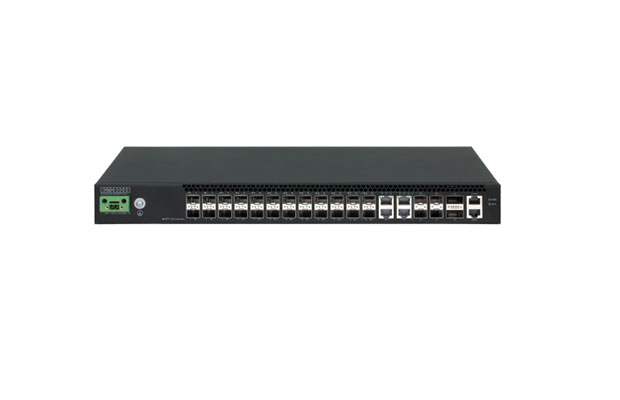

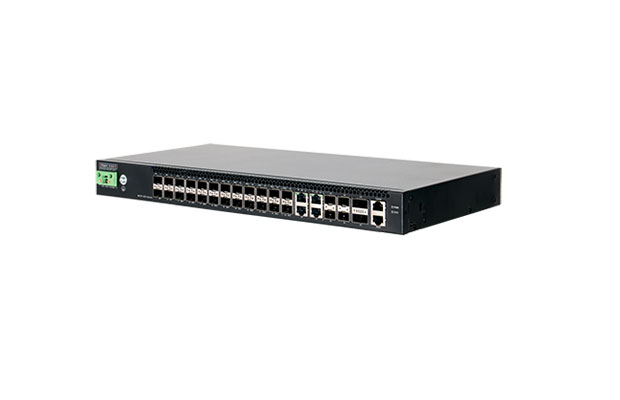

EdgeCore ECS4530-54CSFP-DC-I 48ports Gigabit Ethernet CSFP Switch with 4x10G and 2x20G Switch

$ 2,480.00 $ 2,428.00
  • Part Number: ECS4530-54CSFP-DC-I
  • 22 x CSFP Ports
  • 2 x CSFP/ 4 x 1GbE RJ45 Combo Ports
  • 4 x 10G SFP+ Uplink
  • 2 x 20G QSFP+ Uplink
  • 1 x Console Port
  • 256 Gbps Switching Capacity
  • L2+/L3 Lite Gigabit Ethernet CSFP Switch with 4x10G and 2x 20G Uplinks
  • Warranty: 1-Year on part.
Order Now

Specification

  • Part Number: ECS4530-54CSFP-DC-I
  • 22 x CSFP Ports
  • 2 x CSFP/ 4 x 1GbE RJ45 Combo Ports
  • 4 x 10G SFP+ Uplink
  • 2 x 20G QSFP+ Uplink
  • 1 x Console Port
  • L2+/L3 Lite Gigabit Ethernet CSFP Switch with 4x10G and 2x 20G Uplinks
  • Switching Capacity: 256 Gbps
  • Forwarding Rate: 190.48 Mbps
  • Flash Memory: 2 GB
  • DRAM: 2 GB
  • MAC Address Table: 16 K
  • Jumbo Frames: 10 KB
  • Auto-negotiation, Auto-MDI/MDIX
  • Max System Power Consumption: 75.4W
  • Power input: DC -48~-60 V
  • Operating Temperature: 0 to 60°C
  • Storage Temperature: -40 to 70 °C
  • Operating Humidity (non-condensing): 10% to 90%
  • Storage Temperature (non-condensing): 10% to 90%
  • Rack Space: 19″
  • Dimension (WxDxH): 44 cm x 22 cm x 4.4 cm
  • Weight: 3 kg.
