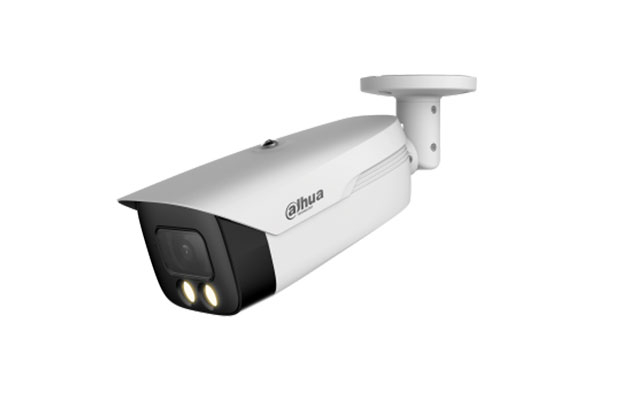

Dahua HAC-HFW1509TLM-A-LED 5MP Full-color Starlight HDCVI Bullet Camera

~~$ 56.00~~ $ 52.00

Part Number: HAC-HFW1509TLM-A-LED
Max 25 fps@5MP (16:9 video output)
120 dB true WDR, 3D NR
24/7 color imaging
50 m illumination distance
CVI/CVBS/AHD/TVI switchable
Built-in mic
3.6 mm fixed lens (6mm mm optional)
IP67, 12 V DC
S2 generation
Warranty: 1-year on part.

Order Now

Specification

Part Number: HAC-HFW1509TLM-A-LED
Camera
Image Sensor: 5 MP CMOS
Max. Resolution: 2880 (H) × 1620 (V)
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/3 s–1/100,000 s; NTSC: 1/4 s–1/100,000 s
Min. Illumination: 0.0005 lux@F1.0 (Color, 30 IRE); 0 lux (Illuminator on)
S/N Ratio: >65 dB
Illumination Distance: 40 m (131 ft)
Illuminator On/Off Control: Auto/Manual
Illuminator Number: 4 (Warm light)
Angle Adjustment: Pan: 0°–360°; Tilt: 0°–90° & Rotation: 0°–360°
Lens
Lens Type: Fixed-focal
Auto Focus: No
Lens Mount: M12
Focal Length: 2.8 mm; 3.6 mm
Max. Aperture: F1.0
Field of View
2.8 mm: H: 112°; V: 57°; D: 132°
3.6 mm: H: 88°; V: 46°; D: 104°
Iris Control: Fixed
Close Focus Distance: 2.8 mm: 2 m (6.56 ft); 3.6 mm: 2.3 m (7.55 ft)
DORI Distance:
Lens: 2.8 mm & 3.6 mm
Detect: 67.4 m ( 221.13 ft) & 80.0 m ( 262.47 ft)
Observe: 27.0 m ( 88.58 ft) & 32.0 m ( 104.99 ft)
Recognize: 13.5 m ( 44.29 ft) & 16.0 m ( 52.49 ft)
Identify: 6.7 m ( 21.98 ft) & 8.0 m ( 26.25 ft)
Video
Video Frame Rate
CVI:
PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 5M 16:9@20 fps; 4M@25 fps
NTSC: 5M 16:9@20 fps; 4M@30 fps
CVBS:
PAL: 960H
NTSC: 960H
Resolution: 5M (2880 × 1620); TVI 5M 16:9 (2960 × 1665); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night: Color
BLC: BLC; HLC; WDR; HLC-Pro
WDR: 120 dB
White Balance: Auto;Area white balance
Gain Control: Auto/Manual
Noise Reduction: 3D NR
Illumination Mode: Smart Light
Defog: Electronic defog
Digital Zoom: 4×
Mirror: Yes
Privacy Masking: Off/On (8 areas, rectangle)
Pick-up Distance: 8 m (26.25 ft)
Certification
Certifications: CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035;
Audio
Built-in Mic: Yes
Port
Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply: 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)
Power Consumption: Max 9 W (12 VDC, LED on)
Environment
Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity: <95% (RH), non-condensing
Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity: <95% (RH), non-condensing
Protection: IP67
Anti-corrosion Level: Basic Protection
Structure
Casing Material: Metal front cover + plastic rear barrel + metal bracket
Product Dimensions: 198.4 mm × 80.2 mm × 76.2 mm (7.81" × 3.16" × 3.00") (L × W × H)
Net Weight: 0.31 kg (0.68 lb)
Gross Weight: 0.48 kg (1.06 lb)
Installation: Wall mount; ceiling mount; vertical pole mount
