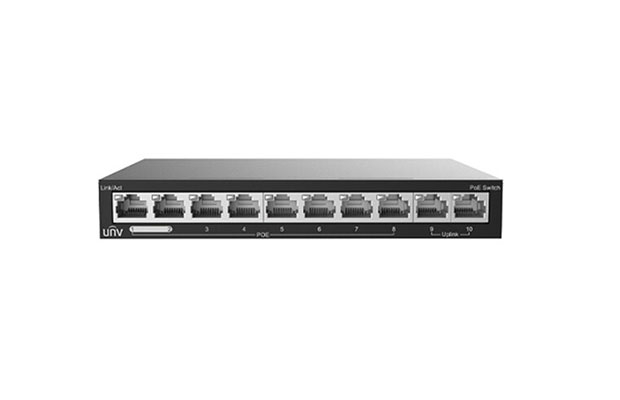

Uniview NSW2020-10T-POE-IN 10-Port PoE Switch

~~$ 48.00~~ $ 45.00

Part Number: NSW2020-10T-POE-IN
Unmanaged Ethernet Switch(PoE)
Multiple working modes to address your business needs: Default(Normal mode), EXTEND(Surveillance mode)
Support port traffic control
Up to 250m transmission distance on Extend mode
Support buffer optimization
All metal housing, safe and reliable
Warranty: 1-year on part.

Specification

Part Number: NSW2020-10T-POE-IN
Ports Type: 10×100Mbps network ports (RJ45), including 8 PoE ports
Prior Ports: 1 to 2
Indicator: POWER Steady on: AC input is normal, POWER Off: No AC input, No PoE Indicator, PoE-MAX off: The POE power supply power of the whole machine is less than 80% of the specification, PoE-MAX Steady on : The POE power supply power of the whole machine is greater than 85% of the specification, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data
PoE: support POE
Switching capacity: 2 Gbps
Packet Buffer: 448K bit
Max. PoE Power: Max capacity: 88 W, Max capacity for single port: 30 W
Storage Temperature: -40 ℃ to 70 ℃
Working Mode: Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters
Power Supply: DC: 48/51V, powered by adapter (AC100-240V, 50/60Hz)
Max.Power: 94W
Operating humidity: 10%～90% (non-condensing)
MAC: 1K
Forwarding performance: 1.49Mpps
Cooling Fans: 0
Storage humidity: 5%～90% (non-condensing)
Dimensions (W×D×H): 171*103*25mm
Operating temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Standards: IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Weight: 0.29KG

Specification
