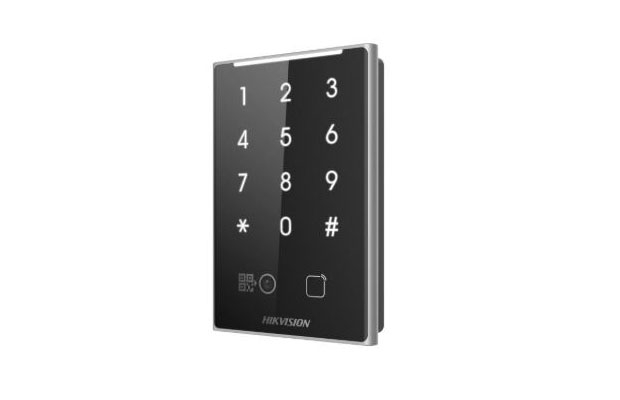

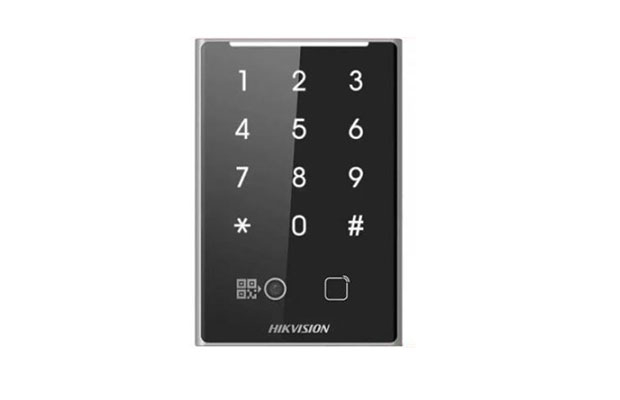

Hikvision DS-K1109DKB-QR Card Reader

$ 80.00 $ 75.00
  • Part Number: DS-K1109DKB-QR
  • Supports RS-485 and Wiegand (W26, W34) protocol
  • Supports reading DESfire card, Felica card and M1 card
  • Supports authentication via card, password and QR code
  • Supports bluetooth module (when connecting by RS-485)
  • Tamper-proof function
  • Warranty: 1-years on part.
Order Now

Specification

  • Part Number: DS-K1109DKB-QR
  • TAMPER: 1
  • RS-485: 1
  • Wiegand: 1
  • Authentication
  • Card type: M1 card;DESfire card;Felica card
  • Power supply: 12 VDC
  • Power consumption: With load: ≤ 14 w
  • Power consumption: Without load: ≤ 4 w
  • Working temperature: -40 °C to 65 °C (-40 °F to 149 °F)
  • Working humidity: 0 to 90% (no condensing)
  • Dimensions: 125 mm × 84.5 mm × 18 mm (4.92" × 3.33" × 0.71")
  • Installation: Wall mounting
  • Weight: ≤ 1 kg (2.20 lb)
  • Buzzer: Support
  • Barcode recognition: Support
  • Format: Code 128, Interleaved 2 of 5, Matrix 2 of 5, Code 39, Codebar, Code 9 and UCC/EAN-128
  • QR code recognition: Support (when connecting by RS-485).
