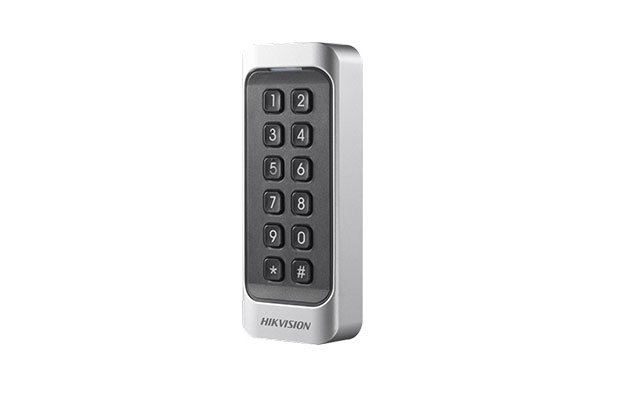

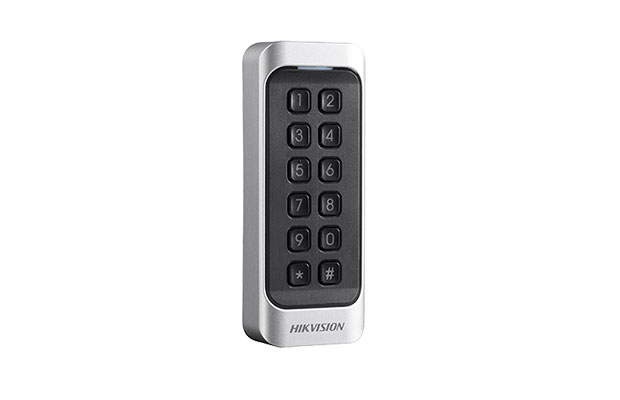

Hikvision DS-K1107AMK Mifare Card Reader

$ 42.00 $ 38.00
  • Part Number: DS-K1107AMK
  • Equipped with the 32-bit high-speed processor
  • RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol
  • Build-in M1 card reading module (Frequency: 13.56MHz).
  • Supports tampering alarm
  • Built-in buzzer for identifying the reading status
  • Online upgrade function
  • Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
  • Warranty: 1-years on part.

Specification

  • Part Number: DS-K1107AMK
  • TAMPER: 1
  • RS-485: 1
  • Wiegand: 1 (set via DIP switch)
  • Card reading frequency: 13.56 MHz
  • Power supply: 12 VDC
  • Power consumption: ≤ 2 W
  • Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
  • Working humidity: 10% to 90% (no condensing)
  • Dimensions: 115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'')
  • Installation: Wall mounting with screws; Do not support gang box
  • Weight: Gross weight: 0.25 kg (0.55 lb)
  • Net weight: 0.16 kg (0.35 lb)
  • Keypad: 12 Keys (0 to 9, *, #)
  • Buzzer: Support.
