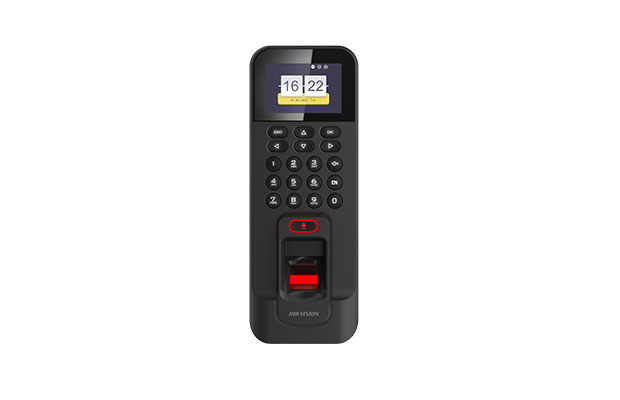

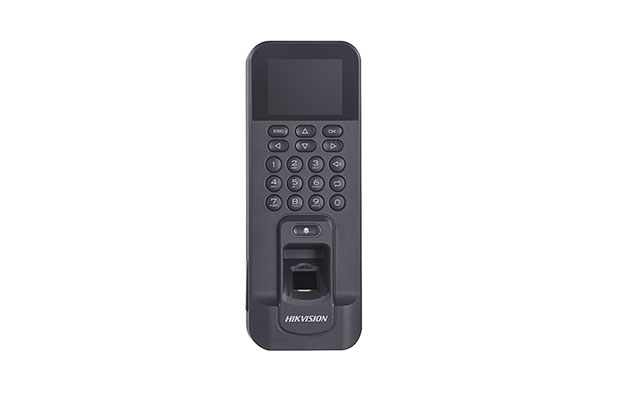

Hikvision DS-K1T804AMF Access Control & Fingerprint Terminal

$ 80.00 $ 75.00
  • Part Number: DS-K1T804AMF
  • Card capacity: 3000
  • Fingerprint capacity: 3000
  • Event capacity: 100,000
  • Built-in card reader for Mifare1 card
  • Communication via TCP/TP and Wi-Fi
  • RS-485, wiegand interface
  • ISUP5.0, ISAPI
  • Integrated management of access control and the time and attendance functions
  • Warranty: 1-years on part.
Order Now

Specification

  • Part Number: DS-K1T804AMF
  • Display
  • Screen size: 2.4-inch
  • Resolution: 320 × 240
  • Type: LCD-TFT display screen
  • Audio
  • Audio output: 1 loudspeaker, 1 buzzer
  • Network
  • Wired network: TCP/IP, 10/100Mbps, self-adaptive
  • Wi-Fi: Support
  • Interface
  • Network interface: 1
  • RS-485: 1
  • Wiegand: 1
  • Lock control: 1
  • Exit button: 1
  • Door contact input: 1
  • Alarm input: 1
  • Alarm output: 1
  • TAMPER: 1
  • USB: 1
  • Capacity
  • Card capacity: 3000
  • Fingerprint capacity: 3000
  • Event capacity: 100,000
  • Authentication
  • Card type: M1 card
  • Card reading distance: 0 to 4.5 cm
  • Card reading duration: ＜ 1 s
  • Fingerprint module: Optical fingerprint module
  • Fingerprint comparing mode: 1:1 and 1:N
  • Fingerprint recognition duration: ＜ 1 s
  • General
  • Indicator: Power/status (red/green)
  • Power supply: 12 VDC/1 A
  • Working temperature: -10 °C to +55 °C (14 °F to +131 °F)
  • Working humidity: 10% to 90% (no condensing)
  • Color: Black (included), gold (optional), silver (optional), white (optional)
  • Dimensions: 205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46")
  • Installation: Surface mounting
  • Language: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian.

Related Products

ZKTeco AL-100 Electric Bolt Lock, Power-on to lock

ZKTeco AL-100 Electric Bolt Lock, Power-on to lock

$ 45.00 $ 40.00
ZKTeco FR1200/ID Fingerprint with ID card

ZKTeco FR1200/ID Fingerprint with ID card

$ 95.00 $ 89.00
ZKTeco AL-350PL Magnetic Lock L Bracket

ZKTeco AL-350PL Magnetic Lock L Bracket

$ 30.00 $ 28.00
ZKTeco MultiBio 800-H/IC Access Control System & Time Attendance

ZKTeco MultiBio 800-H/IC Access Control System & Time Attendance

$ 268.00 $ 258.00
ZKTeco AL-280LED Electric Magnetic Lock

ZKTeco AL-280LED Electric Magnetic Lock

$ 52.00 $ 48.00
ZKTeco Exit Button ACS002

ZKTeco Exit Button ACS002

$ 20.00 $ 18.00
ZKTeco AL-350(LED) Electric Magnetic Lock

ZKTeco AL-350(LED) Electric Magnetic Lock

$ 63.00 $ 58.00
ZKTeco KR102E Reader 125MHz Proximity ID Card

ZKTeco KR102E Reader 125MHz Proximity ID Card

$ 47.00 $ 38.00
ZKTeco SLK20R Finger Print Reader, USB Interface

ZKTeco SLK20R Finger Print Reader, USB Interface

$ 100.00 $ 95.00

New Products Added

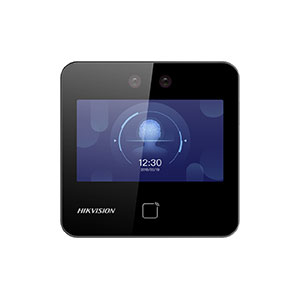

Hikvision DS-K1T343MX​ Value Series Face Access Terminal

Hikvision DS-K1T343MX​ Value Series Face Access Terminal

$ 94.00 $ 89.00

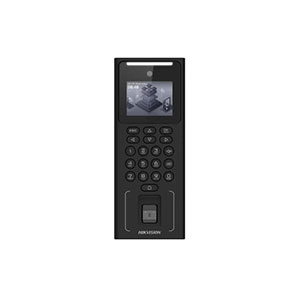

Hikvision DS-K1T321MFX Face Access Terminal

Hikvision DS-K1T321MFX Face Access Terminal

$ 84.00 $ 79.00

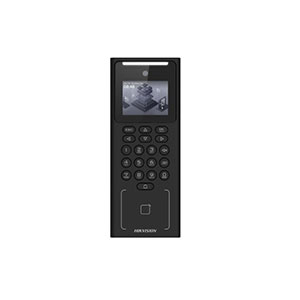

Hikvision DS-K1T321MX Face Access Terminal

Hikvision DS-K1T321MX Face Access Terminal

$ 70.00 $ 65.00

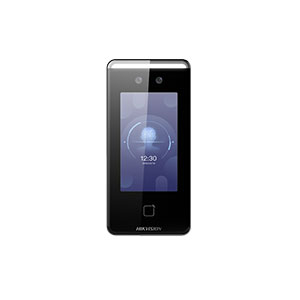

Hikvision DS-K1T341CMW Value Series Face Access Terminal
