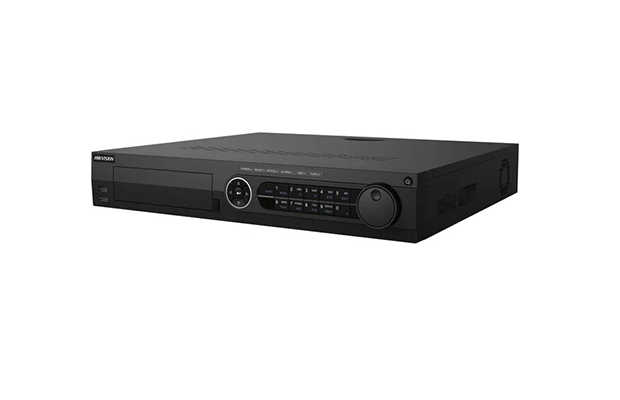

Hikvision iDS-7316HUHI-M4/S 16-ch 5MP 1.5U H.265 AcuSense DVR

~~$ 370.00~~ $ 359.00

Part Number: iDS-7316HUHI-M4/S
16-ch 5MP 1.5U H.265 AcuSense DVR
Deep learning-based perimeter protection
Deep learning-based motion detection 2.0 for all analog channels
Up to 16-ch analog camera inputs and 4 SATA interfaces
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
Up to 8 MP@8 fps/5 MP@12 fps encoding capability
HDTVI/AHD/CVI/CVBS/IP video inputs
Up to 34-ch network camera inputs
POS triggered recording and POS information overlay
Warranty: 1 year on part.

Order Now

Specification

Part Number: iDS-7316HUHI-M4/S
Motion Detection 2.0
Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Perimeter Protection
Human/Vehicle Analysis: Up to 8-ch, for channel 1/2/3/4/9/10/11/12 only
Video and Audio
IP Video Input: 18-ch (up to 34-ch)
Up to 12 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input: 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input: 3K, 4 MP, 1080p25, 1080p30, 720p25, 720p30
AHD Input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
CVBS Input: PAL/NTSC
CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI 1 Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output
Audio Input: 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output: 2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
Synchronous Playback: 16-ch
Recording
Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution: 8 MP/3K/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate: 32 Kbps to 10 Mbps
Dual-stream: Support
Stream Type: Video, Video & Audio
Audio Compression: G.711u
Audio Bitrate: 64 Kbps
Network
Total Bandwidth: 320 Mbps
Remote Connection: 128
Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
Network Interface: 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA: 4 SATA interfaces
eSATA: Support
Capacity: Up to 12 TB capacity for each disk
Serial Interface: RS-232, RS-485 (full-duplex), keyboard
Alarm In/Out: 16/4
USB Interface: Front panel: 2 × USB 2.0 & Rear panel: 1 × USB 3.0
General
Power Supply: 100 to 240 VAC, 50 to 60 Hz
Consumption: ≤ 35 W (without HDD)
Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity: 10% to 90%
Dimension (W × D × H): 440 × 401 × 72 mm (17.3 × 15.8 × 2.8 inch)
Weight: ≤ 5 kg (without HDD, 11.0 lb.)
Warranty: 1 year on part.
