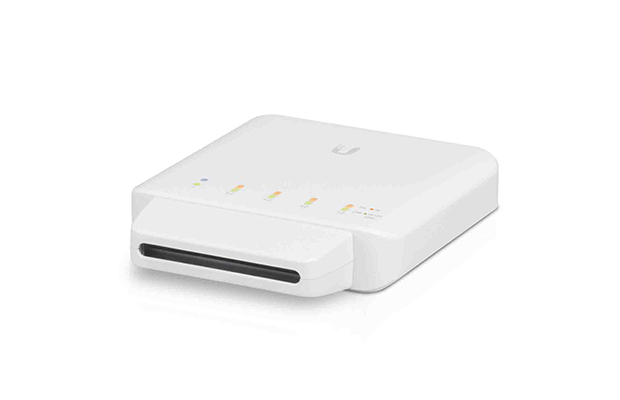

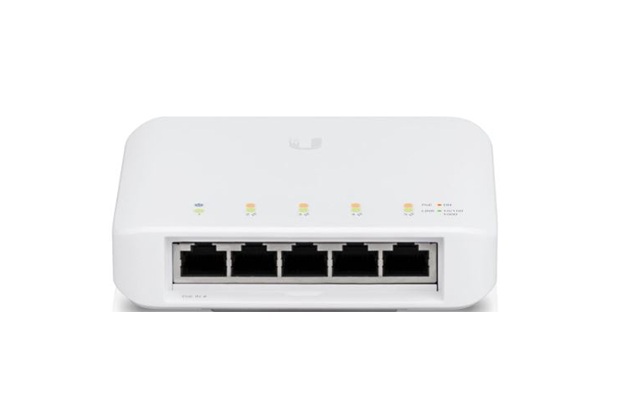

UbiquiTi Switch 5-port Flex (USW-Flex)
$ 160.00
$ 155.00
Part Number: USW-Flex
Flexible 5-port
5x (4 PoE+; 1 PoE++)
Layer 2 PoE switch for indoor and outdoor use
Total PoE Availability: 46W
Switching Capacity: 10 Gbps
Warranty: 1 Year on part.
Order Now
Specification
Part Number: USW-Flex
Overview
Dimensions: 122.5 x 107.1 x 28 mm: (4.8 x 4.2 x 1.1")
Port Layout: 1 GbE RJ45, 5 (4 PoE+; 1 PoE++)
Max. PoE Output: Up to PoE+
Total PoE Availability: 46W
Form Factor: Compact desktop, wall, pole
Performance
Switching Capacity: 10 Gbps
Total Non-Blocking Throughput: 5 Gbps
Forwarding Rate: 7 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 2,000
Layer 2 Features
Egress Rate Limit: Yes
Flow Control: Yes
Port Isolation: Yes
Port Mirroring: Yes
Jumbo Frames: Yes
Hardware
PoE Ports
PoE+: 4 Ports
PoE++: 1 Port
Max. PoE Wattage per Port by PSE
PoE+: 25W
Max. Power Consumption: 5W (Excluding PoE Output), 51W (Including PoE Output)
Power Method: PoE++
Power Input Method: PoE
Supported Voltage Range: 50—57V PoE
Management: Ethernet
Heat Dissipation (Excluding PoE Output): 17.06 BTU/hr
Outdoor Ready: Yes
Weight: 230 g (8.1 oz)
Ambient Operating Temperature: 46W PoE output: -40 to 55° C (-40 to 131° F)
Ambient Operating Temperature: 25W PoE output: -40 to 65° C (-40 to 149° F)
ESD/EMP Protection: Air/contact: ± 16kV
Ambient Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Warranty: 1 Year on part.
