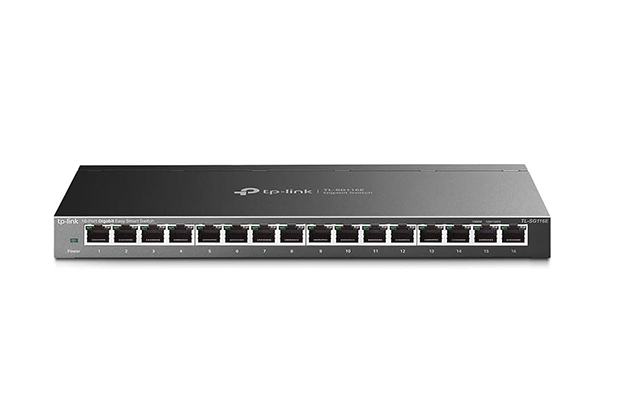

TP-Link TL-SG116E 16-Port Gigabit Easy Smart Switch

~~$ 70.00~~ $ 65.00

Part Number: TL-SG116E
16 10/100/1000Mbps RJ45 ports
Plug and play, with no configuration required
Durable metal casing of superior quality and professional appearance
Intelligent management via a web user interface and downloadable utility
Green technology reduces power consumption
Warranty: 3 Years on part.

Order Now

Specification

Part Number: TL-SG116E
HARDWARE FEATURES
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface: 16 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
Power Supply: External Power Adapter(Output: 12VDC/1.0A)
Dimensions ( W x D x H ): 11.3 × 4.4 × 1.0 in. (286 × 111.7 × 25.4 mm)
Max Power Consumption: 9.19W(220V/50Hz)
Max Heat Dissipation: 31.36BTU/h
PERFORMANCE
Switching Capacity: 32Gbps
Packet Forwarding Rate: 23.81Mpps
MAC Address Table: 8K
Packet Buffer Memory: 4.1Mb
Jumbo Frame: 9KB
SOFTWARE FEATURES
Quality of Service:
Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features:
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN:
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method: Store-And-Forward
OTHERS
Certification: FCC, CE, RoHS
Package Contents:
TL-SG116E
Power Cord
Installation Guide
Rubber Feet
System Requirements: Microsoft® Windows® for running Utility
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Warranty: 3 Years on part.
