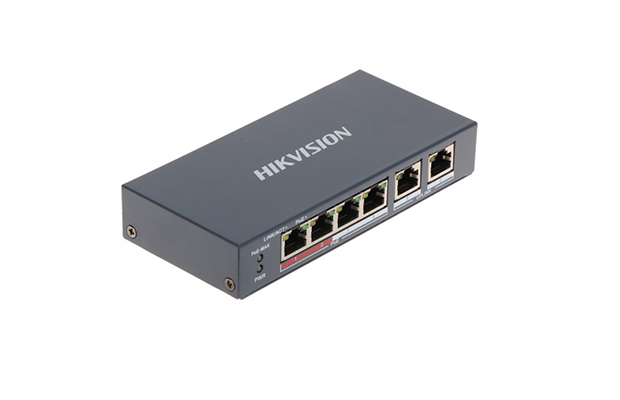

Hikvision DS-3E0106P-E/M 4 Port Fast Ethernet Unmanaged POE Switch

~~$ 44.00~~ $ 40.00

Part Number: DS-3E0106P-E/M
4 x 10/100Mbps PoE port, and 2 × 10/100Mbps RJ45 port.
IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output).
IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
6 KV surge protection for PoE ports.
Up to 300 m long-range transmission.
Wire-speed forwarding.
Store-and-forward switching.
Solid high-strength metal shell.
Reliable fan-free design.
Warranty: 1 Year on part.

Order Now

Specification

Part Number: DS-3E0106P-E/M
General
Shell: Metal material
Net Weight: 0.27 kg (0.60 lb)
Gross Weight: 0.52 kg (1.15 lb)
Dimensions (W × H × D): 145 mm × 68.45 mm × 25.6 mm (5.71'' × 2.69'' × 1.01'')
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity: 5% to 95% (no condensation)
Relative Humidity: 5% to 95% (no condensation)
Power Supply: 48 VDC, 0.8 A
Installation Mode: Desk-Mounted,Wall-Mounted
Max. Power Consumption: 30 W
Power Consumption in Idle: 3 W
Surge Protection: 6 KV
Network Parameters
Ports: 4 x 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
MAC Address Table: 2 K
Switching Capacity: 1.2 Gbps
Packet Forwarding Rate: 0.89 Mpps
Internal Cache: 768 Kbits
PoE Power Supply
PoE Standard: IEEE 802.3af;IEEE 802.3at
PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port: PoE: Ports 1 to 4
Max. Port Power: 30 W
PoE Power Budget: 35 W
Dialing Function
Long Range: Ports 1 to 4 : up to 300 m.
Long range performance may vary depend on camera model or cable condition.
Software Function
VIP Port: Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
Approval
EMC: FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry: CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
Warranty: 1 Year on part.
