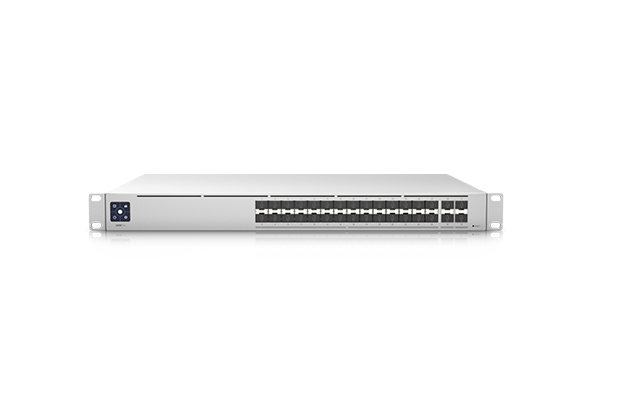

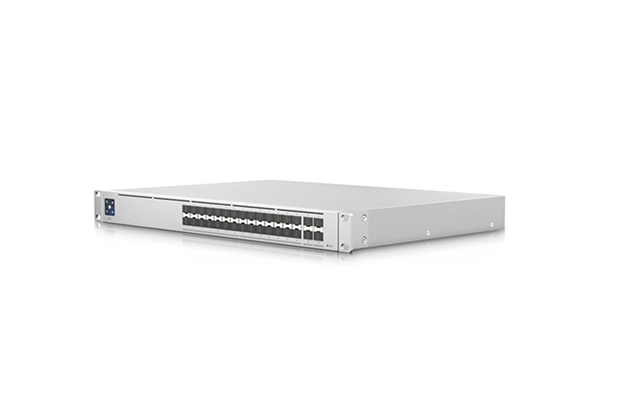

UniFi Switch (USW-Pro-Aggregation) 32-port 10G SFP+ and 25G SFP28 ports

$ 1,230.00 $ 1,219.00
  • Part Number: USW-Pro-Aggregation
  • (28) 10G SFP+ ports
  • (4) 25G SFP28 ports
  • DC power backup-ready
  • Layer 3 switching
  • A 32-port, Layer 3 switch made for high-capacity 10G SFP+ and 25G SFP28 connections.
  • Warranty: 1 Year on part.
Order Now

Specification

  • Part Number: USW-Pro-Aggregation
  • Mechanical
  • Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
  • Weight: Without mounting brackets: 4.6 kg (10.1 lb)
  • Weight: With mounting brackets: 4.7 kg (10.4 lb)
  • Enclosure material: SGCC steel
  • Hardware
  • Management interface: Ethernet In-Band
  • Networking interface: (28) 1/10G SFP+ ports
  • Networking interface: (4) 1/10/25G SFP28 ports*
  • Total non-blocking throughput: 380 Gbps
  • Switching capacity: 760 Gbps
  • Forwarding rate: 565.44 Mpps
  • Power method: (1) Universal input, 100—240V AC, 2A Max., 50/60 Hz & (1) USP RPS DC input, 11.5V DC, 8.7A
  • Power supply: AC/DC, internal, 100W
  • Supported voltage range: 100—240V AC
  • Max. power consumption: 100W
  • ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
  • Services: SMB Layer 3 10/25 G Fiber switch
  • LCM display: (1) 1.3" LCM color touchscreen
  • Ambient operating temperature: -5 to 40° C (23 to 104° F)
  • Ambient operating humidity: 10 to 90% noncondensing
  • Certifications: CE, FCC, IC
  • Switching Features
  • Layer 2 features:
  • -IGMP snooping
  • -STP / RSTP with priorities and port-level disable
  • -Port isolation
  • -Storm control
  • -Voice VLAN
  • -Port mirroring
  • -LACP port aggregation
  • -Multicast / broadcast rate limiting
  • -MAC address blocking
  • -Flow control
  • -802.1X control
  • -Jumbo frames
  • -Proprietary loop protection
  • -DHCP snooping / guarding
  • -Egress rate limit
  • -LLDP-MED
  • -Port restricted by MAC
  • -Device isolation with ACLs
  • Layer 3 features:
  • -DHCP for locally-managed networks
  • -DHCP relay
  • -Inter-VLAN routing between networks on same switch
  • -Static routing between local networks
  • LEDs
  • System: Status
  • SFP28/SFP+: Link/activity
  • Application Requirements
  • UniFi Network: Version 6.1.25 and later
  • Warranty: 1 Year on part.
