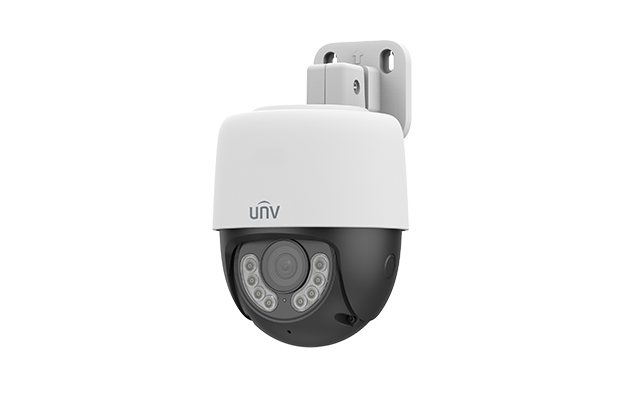

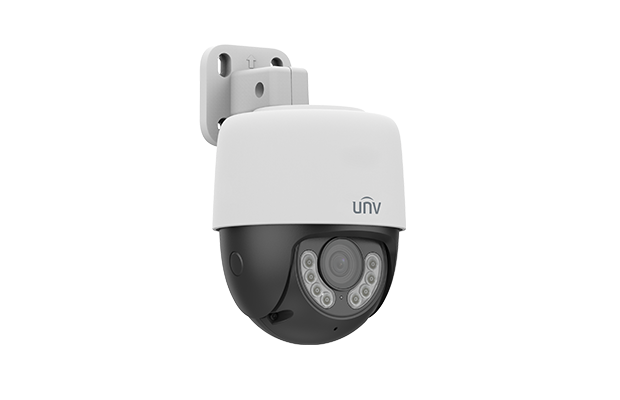

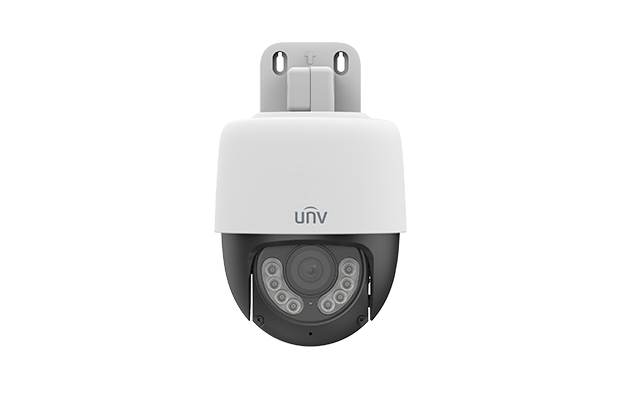

Uniview UAC-P112-AF40-W 2MP ColorHunter HD PT Analog Camera

~~$ 52.00~~ $ 48.00

Part Number: UAC-P112-AF40-W
2MP high quality imaging
TVI/AHD/CVI/CVBS
Supports white light illumination, 24/7 color images
Supports 180° horizontal flip, 180° vertical flip
OSD configuration menu, easy to operate
IP66 waterproof and dustproof design, high reliability
OSD configuration menu in 11 languages
Built-in microphone for high quality audio transmission via coaxial cables
Supports 0 to 345° pan range, 0 to 90° tilt range
Supports digital defog
Warranty: 1-year on Part.

Order Now

Specification

Part Number: UAC-P112-AF40-W
Camera
Max Resolution: 2 MP
Sensor Size: 1/2.9" CMOS
Min. Illumination: 0.005 lux (F1.6, AGC ON), 0 lux (white light on)
Lens
Focus: 4.0 mm
Lens Mount: M12
Angle of View (H): 83.8°
Angle of View (V): 42.7°
Angle of View (D): 100.1°
Illuminator
Illuminator Number: Eight white-light illuminators
Illumination Distance: 30m
Lifetime: ≥ 20000 hours
Video
Resolution: 1080P: 1920(H)×1080(V), 720P: 1280(H) ×720(V)
Frame Rate TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps
AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
CVBS: PAL, NTSC
Shutter Time: PAL: 1/25s-1/50000s，NTSC: 1/30s-1/50000s
Exposure Mode: Four modes: Global (default), BLC, HLC, DWDR
Day/Night: 24/7 color images
Digital Noise Reduction: 2D/3D
White Balance: Two modes: Auto (default), Manual
WDR: DWDR
Flip: Supports 180°horizontal flip, 180°vertical flip
Digital Defog: Support
PTZ
Pan Range: 0° to 345°
Pan Speed: 1° to 40°/s
Tilt Range: 0° to 90°
Tilt Speed: 1° to 30°/s
Number of Presets: 32
Control Mode: 485/BNC
Patrol: N/A
Baud Rate: 9600 bps/4800 bps/2400 bps/1200 bps
Interface
Power Interface: 5.5 mm Power Interface
Video Output: BNC, supports TVI/AHD/CVI/CVBS
RS485: Support
Operating Environment
Temperature: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Humidity: ≤ 95% RH (non-condensing)
Surge Protection: 4 KV for power, 4 KV for video output interfaces, 6 kV for RS485 interface
Ingress Protection: IP66
General
Power: DC 12 V ± 25%
Power Consumption: MAX 8.5W
Mount: Wall Mount, Pendant Mount
Dimensions: Φ118mm*190mm (diameter*height)
Material: Graphene + Plastic
Weight: 477g(1.05lb).
