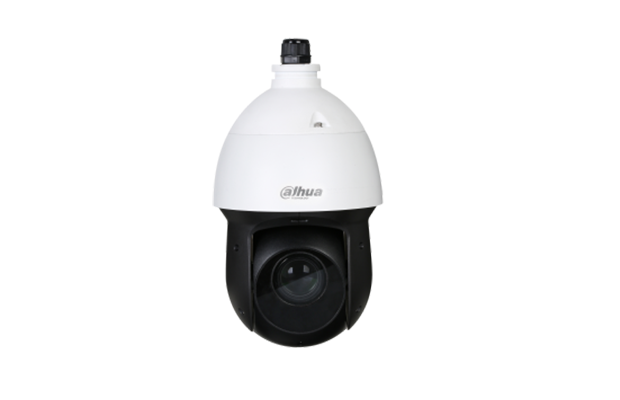

Dahua SD49225-HC-LA 2MP 25x Starlight IR PTZ HDCVI Camera

~~$ 240.00~~ $ 230.00

Part Number: SD49225-HC-LA
1/2.8" 2Megapixel STARVIS™ CMOS
Powerful 25x optical zoom
Starlight technology
120 dB true WDR, 3D DNR
Max. 25/30 fps@1080P, 25/30/50/60 fps@720P
IR distance up to 100 m
IP66
Warranty: 1 Year on part

Order Now

Specification

Part Number: SD49225-HC-LA
Camera
Image Sensor: 1/2.8" STARVIS™ CMOS
Pixel: 2MP
Max. Resolution: 1920 (H) x 1080 (V)
ROM: 16 MB
RAM: 256 MB
Electronic Shutter Speed: 1/3 s–1/100000 s
Scanning System: Progressive
Min. Illumination: Color: 0.005 Lux@F1.6, B/W: 0.0005 Lux@F1.6, 0 Lux@F1.6 (IR on)
Illumination Distance: 100 m (328.08 ft)
Illuminator On/Off Control: Auto/Manual
Illuminator Number: 6
Lens
Focal Length: 4.8 mm–120 mm
Max. Aperture: F1.6–F3.5
Field of View: H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2°
Optical Zoom: 25x
Focus Control: Auto/Semi-Auto/Manual
Close Focus Distance: 0.1 m–1.5 m (0.33 ft–4.92 ft)
Iris Control: Auto/Manual
DORI Distance:
Detect: 1655.2 m (5430.45 ft)
Observe: 656.8 m (2154.86 ft)
Recognize: 331.0 m (1085.96 ft)
Identify: 165.5 m (542.98 ft)
PTZ
Pan/Tilt Range: Pan: 0°–360°Tilt: -15°–+90°; auto flip 180°
Manual Control Speed: Pan: 0.1°–200°/s; Tilt: 0.1°–120°/s
Preset Speed: Pan: 240°/s; Tilt: 200°/s
Presets: 300
Tour: 8 (up to 32 presets per tour)
Pattern: 5
Scan: 5
Speed Adjustment: Support
Power-off Memory: Support
Idle Motion: Preset/Tour/Pattern/Scanning
Protocol: DH-SD; Pelco-P/D (auto recognition)
Video
Resolution: 1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480)
Frame Rate: 1080P (25/30 fps), 720P (25/30/50/60 fps)
Day/Night: Support
BLC: Support
WDR: 120 dB
HLC: Support
White Balance: Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp
Gain Control: Auto/Manual
Noise Reduction: 2D/3D
Defog: Electronic
Digital Zoom: 16x
Flip: 0°/180°
Privacy Masking: Up to 24 areas
CVI Product Output Mode: CVI; TVI; AHD; CVBS
Audio
Compression: G.711a; G.711Mu
Certification
Certifications: CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Port
Audio Input1 (LINE IN; bare wire)
Alarm Input: 2
Alarm Output: 1
Power
Power Supply: DC 12V/3A ± 10%
Power Consumption: 9.6 W 23.2 W (IR light on, PTZ)
Environment
Operating Temperature: –40°C to +70°C (–40°F to +158°F)
Operating Humidity: ≤ 95%RH
Protection: IP66; TVS 6000V lightning protection; surge protection
Structure
Dimensions: 295.4 mm × Φ160.0 mm (11.63" × Φ6.30")
Net Weight: 3 kg (6.61 lb)
Gross Weight: 4.2 kg (9.26 lb)
