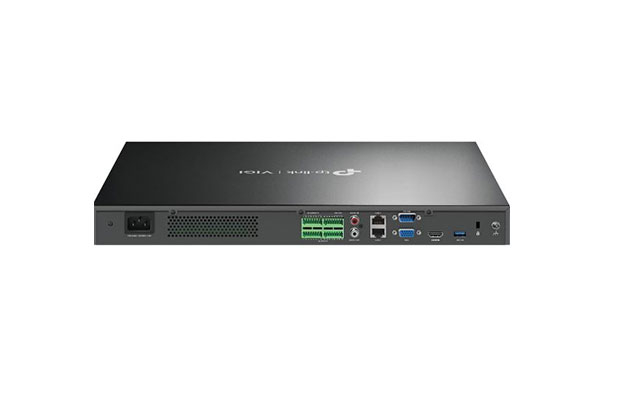

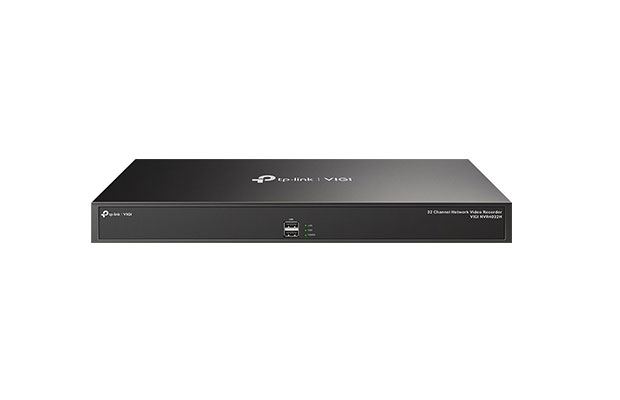

TP-Link VIGI NVR4032H 32-Channel Network Video Recorder

~~$ 265.00~~ $ 225.00

Part Number: NVR4032H
16-ch@2MP/ 8-ch@4MP Decoding Capacity: Allows you to enjoy more channels, live view, and playback at the same time.
1 HDMI and 1 VGA Interface: Supports independent video output.
H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
320 Mbps Incoming and Outgoing Bandwidth: Ensures your NVR manages more cameras with high resolutions.
Mass Storage: Supports 4× SATA, up to 16 TB each.
16-Channel Simultaneous Playback: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
Dual Ethernet Ports Design: Supports three network modes, including muti-address mode, network fault-tolerance and load balance.
Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
Rack Mounting: Space-saving and easy installation.
ONVIF Ensures Compatibility: Easily adds IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
Warranty: 3-years on part.

Order Now

Specification

Part Number: NVR4032H
Video and Audio
IP Video Input: 32-Channel
Incoming Bandwidth: 320 Mbps
Outgoing Bandwidth: 320 Mbps
HDMI Output Resolution: 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output Resolution: 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Video Output Mode: HDMI/VGA Independent Output
Multi-View Display: 1/4/6/8/9/16/25/32/36
DECODING
Audio Compression: G.711A/G.711U/G.726
Decoding Format: H.265+/H.265/ H.264+/H.264
Video Compression: H.265+/H.265/ H.264+/H.264
Record Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Live View/Playback Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback: 16-Channel
Capability: 16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP (30 fps)
Record Management
Record Mode
- Manual Recording
- Scheduling Recording
- Motion Detection Recording
Playback Mode
- Instant Playback
- Regular Playback
- Tag Playback
- Event Playback
Backup Mode
- Regular Backup
- Video Clip Backup
Playback Function
- Play
- Pause
- Stop
- Fast Forward
- Fast Backward
- Play By Frame
- Full Screen
- Video Clip
- Export Clip
- Digital Zoom
- Lock Recording
- Audio On/Off
NETWORK
Protocol: UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access: Android, iOS
Incoming Bandwith: 320 Mbps
Outgoing Bandwidth: 320 Mbps
Web Browser: Chrome (57+), Firefox (52+), Edge (91+)
External Interface
Network Interface: 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface: USB Interface
Audio Interface: 1, Audio In; 1, Audio Out
Alarm In/Out: 16/4
Serial Interface: 1, RS232
Power: 1× AC Jack
Reset Button: 1
Speaker: N/A
eSATA: N/A
HDMI: 1
VGA: 1
HARD DISK
SATA: 4 SATA Interfaces
Capacity: Up to 16 TB Capacity for Each HDD
Alarm
General Alarm: Motion Detection, Video Tampering, Intrusion Detection, Line-Crossing Detection
Anomaly Alarm: Video Loss, Offline and IP Conflict,Disk Exception, Login Exception, Fan Exception
Alarm Linkage: Recording, White Ligh Alarm, Buzzer, Log, Audible Alarm
Network Management
Network Protocols: UPnP (Plug and Play), NTP (Network Timing)
Interoperability: ONVIF, CGI
Mobile Phone Access: Android, iOS
Browser Chrome: (57+), Firefox (52+), Edge (91+)
Record Playback
Record Mode: Manual Recording, Scheduling Recording, Motion Detection
Recording
Playback Mode: Instant Playback, Regular Playback, Tag Playback, Event
Playback
Backup Mode: Regular Backup, Video Clip Backup
Playback Function: Play, Pause, Stop, Fast Forward, Fast Backward, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
GENERAL
Storage Temperature: -40–70 °C
Storage Humidity: 10%~90% RH Non-Condensing
Package Content: VIGI Network Video Recorder
Mouse, Installation Guide, Power Cord, HDD Power Cables, HDD Data Cables, and Terminal Blocks
Mounting Brackets, Screws and Rubber Feet
Working Temperature: -10–55 °C
Working Humidity: 10%~90% RH Non-Condensing
Dimensions( W X D X H ): 440 × 330 × 44 mm
External Power Supply: 100-240 VAC, 50 to 60HZ, 1.5A
Net Weight: 4.0 Kg
Gross Weight: 5.2 Kg
Power Supply: 100-240 VAC, 50 to 60HZ, 1.5A
Max. Power Consumption: 5 W (Without Disk), 48 W (With Disk)
Certifications: CE, EAC, UKCA, RCM, Triman, RoHS, VCCI, FCC, IC, HDMI
VIDEO/IMAGE
IP Video Input: 32-Channel
Multi-View Dispaly: 1/4/6/8/9/16/25/32/36
Video Output Mode: HDMI/VGA Independent Output
Recording Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
HDMI Output Resolution: 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output Resolution: 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
