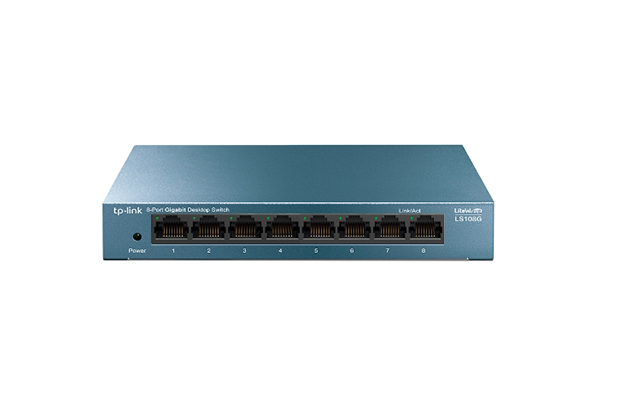

TP-Link LS108G 8-Port 10/100/1000Mbps Desktop Network Switch

$ 30.00 $ 25.00
  • Part Number: TP-Link LS108G
  • 10/100/1000Mbos Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
  • Green Ethernet technology saves power
  • IEEE 802.3X flow control provides reliable data transfer
  • Steel housing, desktop or wall-mounting design
  • Support 802.1p/DSCP QoS function
  • Plug and play, no configuration needed
  • Warranty: 2Years on part.

Specification

  • Part Number: TP-Link LS108G
  • HARDWARE FEATURES
  • Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
  • Interface: 8 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
  • Fan Quantity: Fanless
  • External Power Supply:
  • External Power Adapter
  • • V1, V3: 9VDC / 0.6A
  • • V2: 5VDC / 0.6A
  • LED Indicator:
  • System Power
  • Link/Act indicators per port built into each RJ-45 port
  • Dimensions ( W x D x H ): 6.2 x 3.9 x 1.0 in. (158 x 99.1x 25 mm)
  • Max Power Consumption: 3.7W(220V/50Hz)
  • Max Heat Dissipation: 12.617 Btu/hr
  • PERFORMANCE
  • Packet Forwarding Rate: 11.9 Mpps
  • MAC Address Table: 4K
  • Packet Buffer Memory: 1.5 Mb
  • Jumbo Frame: 16 KB
  • SOFTWARE FEATURES
  • Advanced Features:
  • Green Technology
  • 802.3X Flow Control
  • 802.1P/DSCP QoS
  • Transfer Method: Store and Forward
  • OTHERS
  • Certification: CE, FCC, RoHS
  • Package Contents:
  • 8-Port 10/100/1000Mbps Desktop Switch
  • Power Adapter
  • Installation Guide
  • Environment
  • Operating Temperature: 0°C~40°C (32°F~104°F)
  • Storage Temperature: -40°C~70°C (-40°F~158°F)
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
  • Warranty: 2Years on part.
