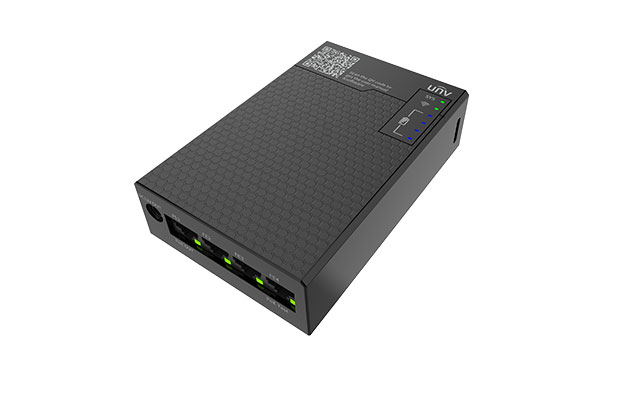

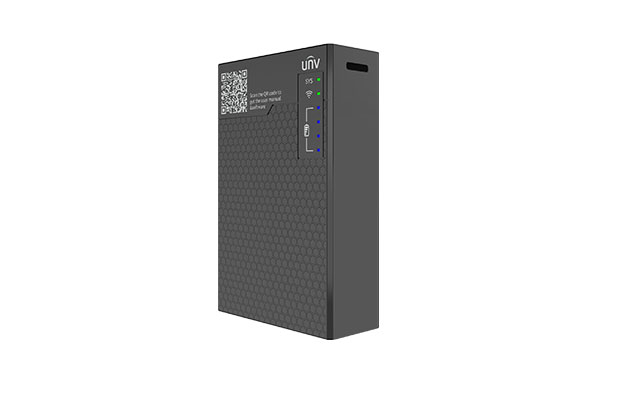

Uniview GCB01-B7 UNV-Link Pro Connect Box

$ 90.00 $ 85.00
  • Part Number: GCB01-B7
  • 4x RJ45 10M/100M Base-TX EthernetNetwork Port
  • 1x Support POE (IEEE802.3af) OutputNetwork Port
  • 4x Support PSE Voltage Test
  • Wi-Fi: 2.4G Wi-Fi (IEEE802.11b/g/n)
  • Warranty: 1-year on part.
Order Now

Specification

  • Part Number: GCB01-B7
  • Interface

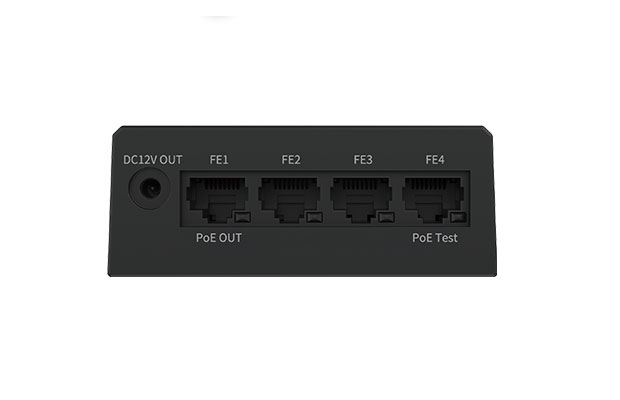

  • Network: 4 x RJ45 10M/100M Base-TX EthernetNetwork Port 1 Support POE (IEEE802.3af) OutputNetwork Port 4 Support PSE Voltage Test
  • Voltage Test: 1 x PSE Voltage Test(PSE voltage detection Range： 1V~56V; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt)
  • Voltage Test: 1 x DC voltage Test(DC voltage detection Range： 1V~56V)
  • Network
  • Wi-Fi: 2.4G Wi-Fi (IEEE802.11b/g/n)
  • Structure / Environment
  • Battery Capacity: 18650 lithium battery, 7500mAH
  • Power Input: 1 x DC 5V/2A max, type-c
  • Power Output: 1 x DC 12V/1A output; 1 x DC 5V/1A output, type-A
  • General
  • LED Indicator: System indicator, WiFi indicator, Battery indicator
  • Dimensions: 130 × 85 × 33mm (5.1” × 3.3” × 1.3”) (L x W x H)
  • Working Environment: -20 °C ~ 60 °C (-4 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
  • Reset Button: Support
