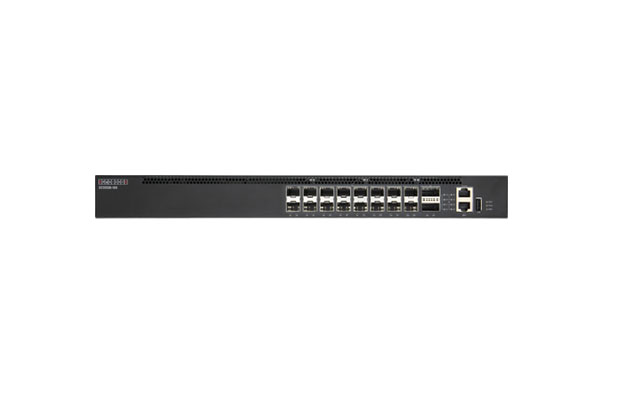

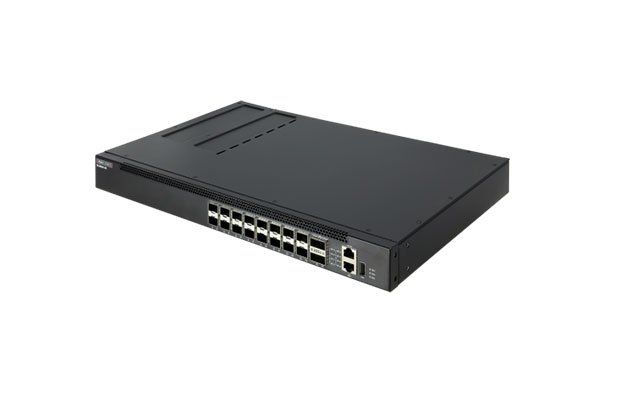

Edgecore ECS5520-18T 18Ports 10G SFP+ Ports L2+ Switch

$ 4,254.00 $ 4,225.00
  • Part Number: ECS5520-18T
  • 16 x 10G SFP+ ports
  • 2 x 40G QSFP+ ports
  • 1 x GE out-of-band Management Port
  • 1 x Console Port
  • 1 x USB Port
  • 480 Gbps Switching Capacity
  • Support ecCLOUD
  • L2+/L3 Lite 10G Ethernet Aggregation Switch with 2x40G Uplinks
  • Warranty: 1-Year on part.
Order Now

Specification

  • Part Number: ECS5520-18T
  • High-performance 10G Layer 2+ /Lite L3 managed switch with 480 Gbps switching capacity
  • Ideal solution for traditional three-tier aggregation or core topologies and folded-Clos architectures, serving with a 2:1 oversubscription
  • 16 x 10G Base-T + 2 x 40G QSFP+ uplinks
  • Full L2+ feature with static route
  • Dual hot swappable, load sharing power supplies to ensure the reliability of the switch
  • Optional 2nd AC power module for redundancy & DC power module
  • Continuous Availability – MLAG, ITU-T 8032 ERPSv2, IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1D Spanning Tree Protocol (STP)
  • Comprehensive QoS – Traffic is prioritized according to 802.1p and DSCP, L2/L3/L4 ACL, Weighted Round Robin (WRR) and strict priority scheduling ensure differential prioritization of packet flows and avoid congestion of egress queues
  • Enhanced Security with Port security, IEEE 802.1X port-based or MAC-based access control, DHCP snooping, IP Source Guard, Access Control Lists (ACLs), DAI (Dynamic ARP Inspection); Secure Shell (SSH) and Secure Sockets Layer (SSL/HTTPS) providing secure network management
  • Robust Multicast Control with IGMPv1/v2/v3 Snooping, MVR
  • Simple Management with an industry-standard command-line interface (CLI), Web GUI, SNMPv1/v2/v3 with complete private MIB
  • IPv6 Management, DCHPv6 Snooping, IPv6 Source Guard
  • IPv4/ IPv6 static route.

Related Products

Dahua PFS3006-4ET-60 6-Port 10/100Mbps Unmanaged Desktop Switch with 4 PoE Ports

Dahua PFS3006-4ET-60 6-Port 10/100Mbps Unmanaged Desktop Switch with 4 PoE Ports

$ 45.00 $ 43.00
Reyee RG-ES210GC-LP 10-Port Gigabit Smart Cloud Managed PoE Switch

Reyee RG-ES210GC-LP 10-Port Gigabit Smart Cloud Managed PoE Switch

$ 104.00 $ 99.00
D-Link DGS-1016C 16-Port Gigabit Ethernet Unmanaged Switch

D-Link DGS-1016C 16-Port Gigabit Ethernet Unmanaged Switch

$ 65.00 $ 60.00
TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

$ 40.00 $ 38.00
Dahua PFS3005-4ET-60 5-Port Unmanaged Desktop Switch with 4-Port PoE

Dahua PFS3005-4ET-60 5-Port Unmanaged Desktop Switch with 4-Port PoE

$ 44.00 $ 39.00
Ruijie/Reyee RG-ES08G 8-Port Gigabit unmanaged Switch

Ruijie/Reyee RG-ES08G 8-Port Gigabit unmanaged Switch

$ 34.00 $ 29.00
TP-Link TL-SG3210XHP-M2 JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+

TP-Link TL-SG3210XHP-M2 JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+

$ 260.00 $ 249.00
TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch

TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch

$ 22.00 $ 20.00
Huawei S310-24ST4X 24Port SFP L2+ Management Gigabit Switch

Huawei S310-24ST4X 24Port SFP L2+ Management Gigabit Switch

$ 440.00 $ 429.00
Huawei S220-24T4X 24Port L2 Management Gigabit Switch

Huawei S220-24T4X 24Port L2 Management Gigabit Switch

$ 276.00 $ 265.00
Reyee RG-ES08G-L 8-Port Gigabit unmanaged Switch

Reyee RG-ES08G-L 8-Port Gigabit unmanaged Switch

$ 32.00 $ 28.00
TP-Link TL-SG3428X JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

TP-Link TL-SG3428X JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

$ 200.00 $ 190.00

New Products Added

EdgeCore ECS4150-28P 24ports Gigabit PoE Managed Switch

EdgeCore ECS4150-28P 24ports Gigabit PoE Managed Switch

$ 1,110.00 $ 1,065.00
EdgeCore ECS4150-28T 24ports Gigabit L2+ Ethernet Managed Switch

EdgeCore ECS4150-28T 24ports Gigabit L2+ Ethernet Managed Switch

$ 700.00 $ 685.00
EdgeCore ECS1100-28HP 24ports GE, PoE+ Smart Managed Switch

EdgeCore ECS1100-28HP 24ports GE, PoE+ Smart Managed Switch

$ 840.00 $ 819.00
EdgeCore ECS2020-28P 28-Port Gigabit PoE Managed Switch

EdgeCore ECS2020-28P 28-Port Gigabit PoE Managed Switch

$ 810.00 $ 790.00
EdgeCore ECS2020-28T 28-Port Gigabit Managed Switch

EdgeCore ECS2020-28T 28-Port Gigabit Managed Switch

$ 400.00 $ 385.00

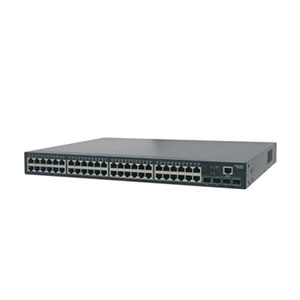

Edgecore ECS4120-52T 52-port Gigabit, 4P 10G SFP+ ports L2+ Switch

Edgecore ECS4120-52T 52-port Gigabit, 4P 10G SFP+ ports L2+ Switch

$ 1,998.00 $ 1,963.00

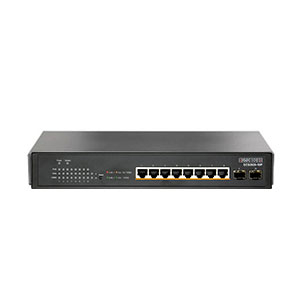

Edgecore ECS2020-10P 8P GE ports, 2G SFP ports with 8 port PoE Switch

Edgecore ECS2020-10P 8P GE ports, 2G SFP ports with 8 port PoE Switch

$ 420.00 $ 409.00

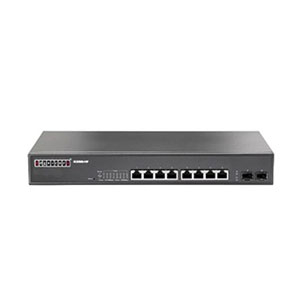

Edgecore ECS2020-10T 8P GE ports, 2G SFP ports Switch
