TP-LINK ER706W Omada AX3000 Gigabit VPN Router

~~$ 115.00~~ $ 109.00

Part Number: ER706W
AX3000 Dual-Band WiFi: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*

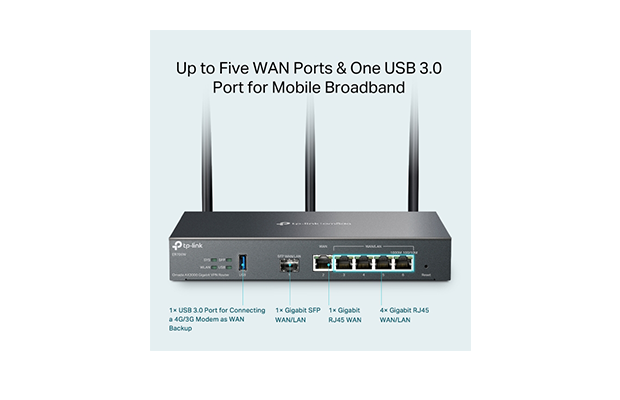

6 Gigabit Ethernet Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
Omada Mesh Technology: Seamlessly connects to EAPs that support mesh technology, ideal for large-scale scenarios.**
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Boosted Coverage: Triple external antennas extend and concentrate the Wi-Fi signals.
High-Security VPN: Supports multiple VPN protocols including IPSec / SSL / Wireguard / PPTP / L2TP VPN, helping users to establish remote connections more flexibly.△
Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
Warranty: 3 Year on part

Order Now

Specification

Part Number: ER706W
SECURITY
Access Control: Source/Destination IP Based Access Control
Filtering:
- Web Group Filtering†
- URL Filtering
- Web Security†
ARP Inspection:
- Sending GARP Packets
- ARP Scanning†
- IP-MAC Binding
Attack Defense:
- TCP/UDP/ICMP Flood Defense
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN
HARDWARE FEATURES
Interface:
- 1 Gigabit SFP WAN/LAN Port
- 1 Gigabit WAN Port
- 4 Gigabit LAN/WAN Ports
- 1 USB3.0 (supports USB LTE dongle and USB Storage)
Button: Reset Button
Power Supply: 12VDC / 2A Power Adapter
Wi-Fi Frequency & Signal Rate: 2.4 GHz: 574 Mbps & 5 GHz: 2402 Mbps (HE160)
Flash: 128 MB NAND
DRAM: 512 MB DDR4
Dimensions ( W x D x H ): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)
Antenna:
- 2.4 GHz: 2x 3 dBi dual-band detachable antennas
- 5 GHz: 3x 4.5 dBi dual-band detachable antennas
Mounting: Desktop/Wall-mounting
Max. Power Consumption:
- EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)
- US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected)
PERFORMANCE
GRE: Unencrypted: 624.2Mbps & Encrypted: 301.5Mbps
WireGuard VPN: 393.5Mbps
Concurrent Session: 150,000
New Sessions /Second: 5,100
NAT (Static IP): 937.2 Mbps / 936.1Mbps
NAT(DHCP): 945.8 Mbps / 940.6Mbps
NAT(PPPoE): 942.9 Mbps / 942.9Mbps
NAT (L2TP): 837.4 Mbps / 881.5Mbps
NAT (PPTP): 803.0 Mbps / 910.5 Mbps
IPsec VPN Throughput:
- ESP-SHA1-AES256: 646.9Mbps
- ESP-SHA256-AES256: 642.8Mbps
- ESP-SHA384-AES256: 648.9Mbps
- ESP-SHA512-AES256: 658.4 Mbps
OpenVPN: 129.3Mbps
L2TP VPN Throughput:
- Unencrypted: 1034.0 Mbps
- Encrypted: 570.0 Mbps
PPTP VPN Throughput:
- Unencrypted: 1165.0 Mbps
- Encrypted: 209.0 Mbps
SSL VPN Throughput: 126.7Mbps
66 Byte Packet Forwarding Rate: 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate: 81,274 pps / 91,275 pps
WIRELESS FEATURES
Advanced Features:
- Seamless Roaming
- Mesh (with EAP that supports Mesh)
- OFDMA
- Beamforming
- MU-MIMO
- Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Guest Network: Support
WIRELESS FEATURES
Advanced Features:
- Seamless Roaming
- Mesh (with EAP that supports Mesh)
- OFDMA
- Beamforming
- MU-MIMO
- Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Guest Network: Support
BASIC FUNCTIONS
WAN Connection Type:
- Static IP
- Dynamic IP
- PPPoE (supports MRU Configuration)
- PPTP
- L2TP
MAC Clone: Modify WAN Address
DHCP:
- DHCP Server
- DHCPv6 PD Server (only in Standalone Mode)
- DHCP Options Customization
- DHCP Address Reservation
- Multi-IP Interfaces
- Multi-Net DHCP
IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN: 802.1Q VLAN
IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Advanced Features
Access Control IP/Port/Protocol/Domain Name Filtering
Advanced Routing:
- Static Routing
- Policy Routing
- RIP†
- OSPF†
Bandwidth Control: IP-Based Bandwidth Control
Load Balance:
- Intelligent Load Balance
- Application Optimized Routing
- Link Backup(Timing, Failover)
- Online Detection
NAT:
- One-to-One NAT
- Multi-Net NAT
- Virtual Server
- Port Triggering†
- NAT-DMZ
- FTP/H.323/SIP/IPSec/PPTP ALG
- UPnP
Session Limit: IP-Based Session Limit
VPN
SSL VPN : 50 Tunnels
IPsec VPN:
- 100 IPSec VPN Tunnels
- LAN-to-LAN, Client-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- IPsec Failover
- IKE v1/v2
- MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
- NAT Traversal (NAT-T)
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
PPTP VPN:
- PPTP VPN Server
- PPTP VPN Client (10)△
- 50 Tunnels
- PPTP with MPPE Encryption
L2TP VPN:
- L2TP VPN Server
- L2TP VPN Client (10)△
- 50 Tunnels
- L2TP over IPSec
OpenVPN:
- OpenVPN Server
- OpenVPN Client (5)△
- 55 OpenVPN Tunnels
- "Certificate + Account" Mode
- Full Mode
WireGuard VPN: 20 Tunnels
AUTHENTICATION
Web Authentication:
- No Authentication
- Simple Password§
- Hotspot (Local User / Voucher§ / SMS§ / Radius§)
- External Radius Sever
- External Portal Sever§
- LDAP
Management Features
Omada App: Yes.
Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
Cloud Access: Yes.
Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance:
- Web Management Interface
- Remote Management
- Export & Import Configuration
- SNMP v1/v2c/v3
- Diagnostics (Ping & Traceroute)†
- NTP Synchronize†
- Port Mirroring
- CLI (only in Standalone Mode)
- Syslog Support
Zero-Touch Provisioning: Yes. Require the use of Omada Cloud-Based Controller.
Management Features:
- Automatic Device Discovery
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- Captive Portal Configuration
OTHERS
Certification: CE, FCC, RoHS
Package Content:
- ER706W
- Power Adapter
- Quick Installation Guide
System Requirements
• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux
Environment :
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
- Operating Humidity: 10% to 90% non-condensing
- Storage Humidity: 5% to 90% non-condensing
Warranty: 3 Year on part
