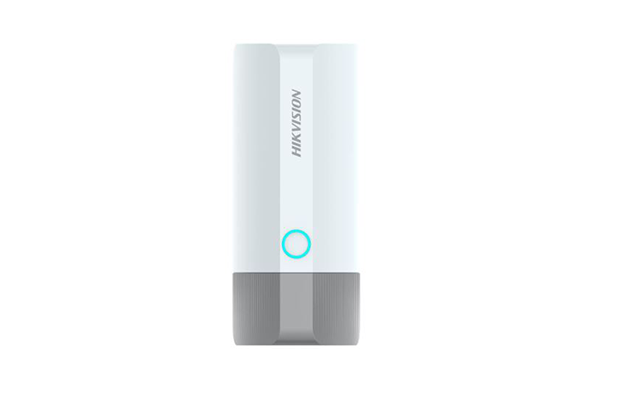

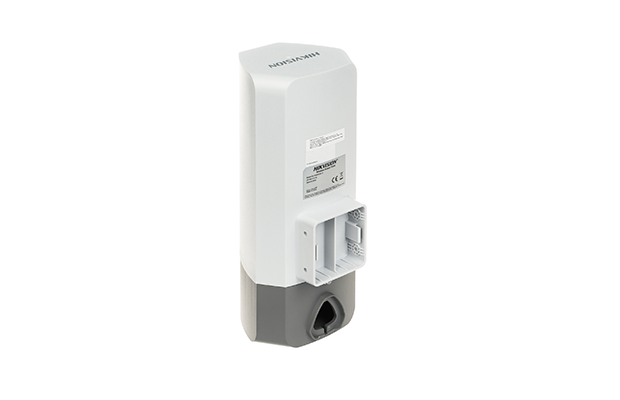

Hikvision DS-3WAP623E-SI Wi-Fi 6 3000M Outdoor Access Point

~~$ 144.00~~ $ 135.00

Part Number: DS-3WAP623E-SI
3000 Mbps Dual-band Wi-Fi 6 Gigabit outdoor AP
2x2 MIMO, 1 Gigabit port with PoE in
IP68, Max/Recommend user access is 256/100
HPP/HC unified cloud app management
Support batch managed via AC Router
Support standalone configuration via AP's web
DC 12V (Note: power adapter is not included, suggest using POE for power supply, no need aditional power adapter)
Warranty: 1 Year on Part.

Order Now

Specification

Part Number: DS-3WAP623E-SI
General
Weight: 1.07 kg (2.35 lb)
Installation Mode: Wall-Mounted,Pole
Working Temperature: -30 °C to 55 °C (-22 °F to 131 °F)
Working Humidity: 5% to 95% (no condensation)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Storage Humidity: 5% to 95% (no condensation)
Product Dimensions (W × H × D): 102 mm × 110 mm × 250 mm (3.97'' × 4.33'' × 9.84'')
Packing List: 3000 M Access Point ×1,Screw Pack × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
Power Consumption: Max. 14.4 W
IP Rating: IP67
WLAN Parameters
Maximum Number of Clients: 256
Recommended Number of Clients: 100
Maximum Number of SSIDs: 8
Working Frequency Band: radio 1: 5G(11a/n/ac/ax), radio 2: 2.4G(11b/g/n/ax)
Wi-Fi Standards: Wi-Fi 6
Wi-Fi Speed: 2.4 G: 575 Mbps,5 G: 2400 Mbps
Spatial Streams: 2.4 GHz, 2 × 2 , MU-MIMO, 5 GHz, 2 ×2 , MU-MIMO
Channel Width: 2.4 GHz: Auto/20 /40 MHz,5 GHz: Auto/20 /40 /80/ 160MHz
Number of Antennas: 2.4GHz：2；5GHz：2
Antenna Type: Built-in omnidirectional antennas
Antenna Gain: 2.4 GHz: 10 dBi,5 GHz: 5 dBi
Transmit Power: 23 dBm
Modulation Technology: OFDM: BPSK@6/9Mbp, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps; DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps; MIMO-OFDM (11n): MCS 0-15; MIMO-OFDM (11ac): MCS 0-9
Software Specifications
WLAN Security: WAP-PSK,WAP2-PSK,WPA-WAP2-PSK,Blocklist & Allowlist,Support Multiple encryption key triggered dynamic unicast/multicast key update,Support Open system/shared key authentication,Support wireless endpoint access,Support 802.11i,Support SSID and VLAN binding
Management & Maintenance: Centralized AC management
Version Upgrade: upgrade on Web
Hardware Specifications
Interface: 1 × Gigabit RJ45 uplink port
Power Supply: IEEE 802.3af/at POE,48 VDC 0.3A
LED Indicator: Yellow/green/blue for different working states, flashing mode
Reset Button: Hardware Resetting Button
Approval
EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1)
Chemistry CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Radio EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
Warranty: 1 Year on Part.
