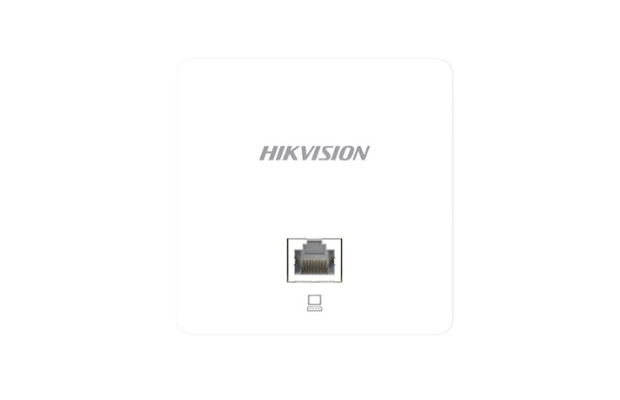

Hikvision DS-3WAP521-SI Wi-Fi 5 1200M In-Wall Access Point

~~$ 64.00~~ $ 59.00

Part Number: DS-3WAP521-SI
2 Gigabit LAN Ports with 1 PoE Input
802.11ac Wave 2 1167 Mbps
86 mm Wall Junction Box for Easy Installation
50+ Concurrent User Connections
Auto RF Optimization
Support Intelligent Fast Roaming
Warranty: 1 Year on Part.

Order Now

Specification

Part Number: DS-3WAP521-SI
General
Weight: 0.2 kg (0.44 lb)
Installation Mode: In-Wall Mounting
Working Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Working Humidity: 5% to 95% (no condensation)
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Storage Humidity: 5% to 95% (no condensation)
Product Dimensions (W × H × D): 86 mm × 86 mm × 35 mm (3.38'' × 3.38'' × 1.37'')
Packing List: 1200 M Access Point ×1,Screw Pack × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
Power Consumption: Max. 8 W
WLAN Parameters
Maximum Number of Clients: 128
Recommended Number of Clients: 50
Maximum Number of SSIDs: 8
Working Frequency Band: radio 1: 5G(11a/n/ac), radio 2: 2.4G(11b/g/n)
Wi-Fi Standards: Wi-Fi 5
Wi-Fi Speed: 2.4 G: 300 Mbps,5 G: 867 Mbps
Spatial Streams: 2.4 GHz, 2 × 2 , MU-MIMO, 5 GHz, 2 ×2 , MU-MIMO
Channel Width: 2.4 GHz: Auto/20 /40 MHz,5 GHz: Auto/20 /40 /80/ MHz
Number of Antennas: 2.4GHz：2；5GHz：2
Antenna Type: Built-in omnidirectional antennas
Antenna Gain: 2.4 GHz: 3 dBi,5 GHz: 3 dBi
Transmit Power: 20 dBm
Modulation Technology: OFDM: BPSK@6/9Mbp, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps; DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps; MIMO-OFDM (11n): MCS 0-15; MIMO-OFDM (11ac): MCS 0-9
Software Specifications
WLAN Security: WAP-PSK,WAP2-PSK,WPA-WAP2-PSK,Blocklist & Allowlist,Support Multiple encryption key triggered dynamic unicast/multicast key update,Support Open system/shared key authentication,Support wireless endpoint access,Support 802.11i,Support SSID and VLAN binding
Management & Maintenance: Centralized AC management
Version Upgrade: upgrade on Web
Hardware Specifications
Interface: 1 × Gigabit RJ45 uplink port, 1 × Gigabit RJ45 port
Power Supply: IEEE 802.3af/at POE
LED Indicator: Yellow/green/blue for different working states, flashing mode
Reset Button: Hardware Resetting Button
Approval
EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1)
Chemistry CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Radio EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
Warranty: 1 Year on Part.
