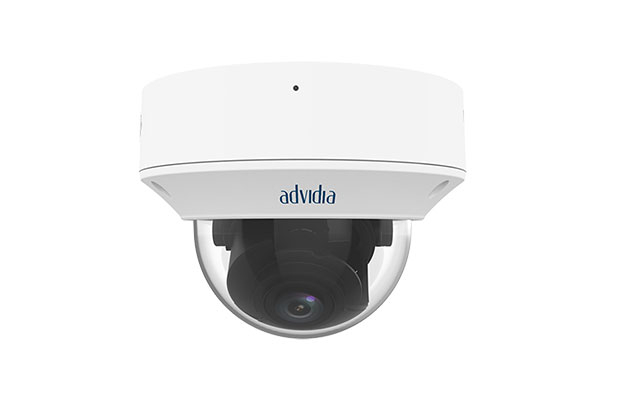

Advidia M-87-V 8MP IR Dome Network Camera

~~$ 520.00~~ $ 505.00

Part Number: M-87-V
4K (3840 x 2160) Resolution
8-megapixel resolution
True WDR of 120dB
Weather Proof Rating: IP67
Vandal Proof: IK 10 Rated
2.8mm - 12mm motorized lens
Video Insight VMS license included
Warranty: 1-Years on part.

Order Now

Specification

Part Number: M-87-V
Device
Image Sensor: 1/2.8" Progressive Scan CMOS
Min Illumination: Colour: 0.003Lux (F1.6, AGC ON) | 0Lux with IR
Shutter Time: Auto/Manual, 1 ~ 1/100000s
Lens: 2.8 ~ 12mm
WDR: 120dB
Angle of View: H: 107.4°~ 29.2°, V: 54.2°~ 16.3°, O: 111.0°~33.1°
Angle Adjustment: Pan: 0° ~ 355° Tilt: 0° ~ 80° Rotate: 0° ~ 355°
3-Axis Adjustment: Yes
Day & Night: IR-Cut Filter with Auto Switch (ICR)
IR Range: Up to 40m (131ft) IR range
Compression Standard
Video Compression: Ultra 265, H.265, H.264, MJPEG
Video Bit Rate: 128 Kbps~16 Mbps
Tri-Stream: Yes
Analytics: Cross Line, Intrusion, Enter Area, Leave Area Detection;
Motion Detection, Tampering Alarm, Audio Detection
Max. Image Resolution: 3840 x 2160
Frame Rate: 20fps (3840 x 2160)
ROI Codec: Up to 8 areas
Image Setting: White Balance, Digital Noise Reduction, Smart IR, Flip, Dewarping, HLC, BLC
Network
Alarm Channels: 1 Channel In | 1 Channel Out
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, 802.1x, SNMP
Interface
Communication Interface: 1 RJ45 10M/100M Base-TX Ethernet
System Compatibility: ONVIF (Profile S, Profile G, Profile T), API
Local Storage: Micro SD, up to 256GB
Audio: Input: Impedance 35kΩ; Amplitude 2V [p-p]
Output: Impedance 600Ω; Amplitude 2V [p-p]
Built-in: Mic or External Audio Input/Output
General
Operating Conditions: Temperature: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (Non-Condensing)
Power Consumption: Max 9.0W
Power Supply: DC 12V±25%, PoE (IEEE 802.3af)
Weather Proof Rating: IP67
Vandal Resistant: IK10
Dimensions: Φ148 x 111mm (Ø5.8” x 4.4”)
Weight: 0.97kg (2.14lb).
