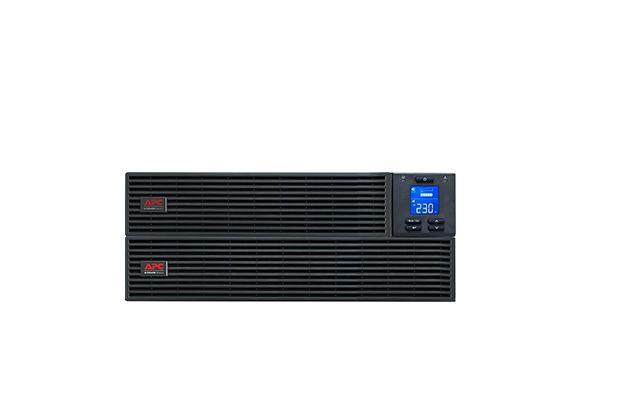

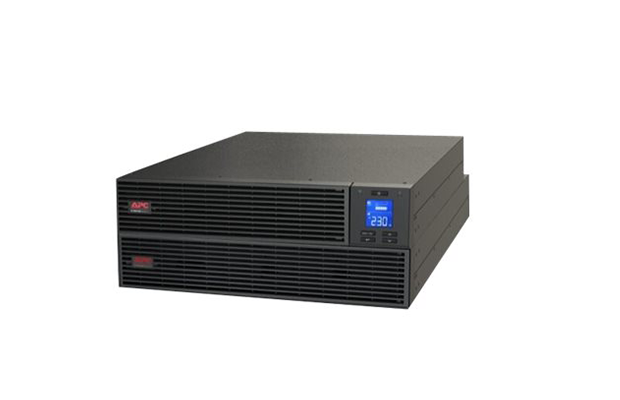

APC Easy UPS ONLINE SRV RM Ext. Runtime 3000VA 230V with Batt pack (SRV3KRIL)

~~$ 1,260.00~~ $ 1,240.00

Part Number: SRV3KRIL
Lead time: Usually in Stock
Run time for load: 2400 W
Min-max: 240-2400 W, 11min 1s
Max. Capacity Used: 100 %
Main Input Voltage: 230 V
Warranty: 2 years repair or replace

Order Now

Specification

Part Number: SRV3KRIL
Overview
Presentation: High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Lead time: Usually in Stock
Main
Run time for load: 2400 W
Min-max: 240-2400 W, 11min 1s
Max. Capacity Used: 100 %
Main Input Voltage: 230 V
Other Input Voltage: 220 V, 240 V
Main Output Voltage: 230 V
Other Output Voltage: 220 V, 240 V
Rated power in W: 2400 W
Rated power in VA: 3000 VA
output connection type: 3 India 3-pin 6A
Output connector type: Hard wire 3-wire (1P + N + E) 1
Number of rack unit: 4U
Provided equipment
1 USB cable
1 RS-232 configuration cable
2 rack mounting brackets
1 external battery pack
1 battery cable
user manual
General
Number of power module filled slots: 0
Number of power module free slots: 0
Redundant: No
Physical
Colour: Black (RAL 7010)
Height: 17.2 cm
Width: 43.8 cm
Depth: 63.2 cm
Net weight: 50.1 kg
Mounting location: Front
Mounting preference: Lower
Mounting mode: Rack-mounted with kit
USB compatible: Yes
Mounting position: Horizontal
Input
Input voltage limits: 110...280 V half load, 160...280 V full load
Number of input connectors: 1 hard wire 3-wire (1P + N + E)
Input protection type: Circuit breaker
Network frequency: 40...70 Hz auto sensing
Output
Maximum configurable power in VA: 3000 VA
Maximum configurable power in W: 2400 W
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion: 3 %
UPS type: Double conversion online
Wave type: Sine wave
Efficiency: 90 % (full load)
Additional information: Configurable for 220 : 230 or 240 nominal output voltage
Bypass type: Internal bypass (automatic and manual)
Crest factor: 3 : 1
Conformance
Product certifications: BIS
Environmental
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 % non-condensing
Operating altitude: 0...3000 m
Ambient air temperature for storage: -20…60 °C
Storage Relative Humidity: 0…95 % non-condensing
Storage altitude: 0…15000 m
Acoustic level: 50 dBA
heat dissipation: 910 Btu/h
IP degree of protection: IP20
Batteries & Runtime
Run Time: View Runtime Graph
Efficiency: View Efficiency Graph
Battery type: Lead-acid battery
Battery voltage: 72 V
Number of battery filled slots: 1
Number of battery free slots: 0
Battery recharge time: 5.5 h
Battery charger power: 350 W rated
Battery option
SRV72RBP-9A 1 1425.6 VAh
SRV72RBP-9A 2 2332.8 VAh
SRV72RBP-9A 3 3369.6 VAh
Communications & Management
Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power off: Yes
control panel: Multifunction LCD status and control console
Surge Protection and Filtering
Surge energy rate: 600 J
Packing Units
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 48 cm
Package 1 Width: 76 cm
Package 1 Length: 60 cm
Package 1 Weight: 58.7 kg
Warranty: 2 years repair or replace
