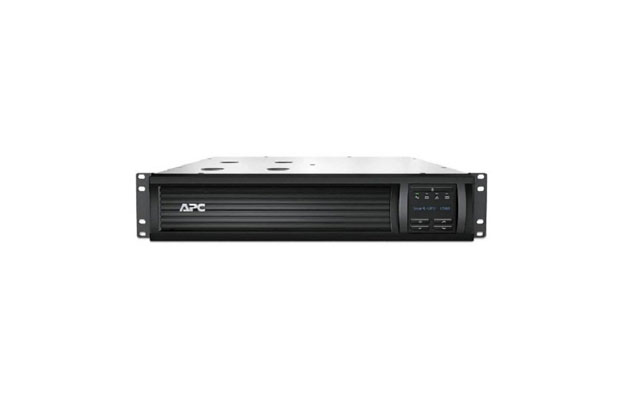

APC Smart-UPS 1500VA LCD RM 2U 230V with SmartConnect SMT1500RMI2UC

~~$ 770.00~~ $ 755.00

Brand Name: APC
Part Number: SMT1500RMI2UC
warranty: 3 years repair or replace

Order Now

Specification

Brand Name: APC
Part Number: SMT1500RMI2UC
Output power capacity: 1.0kWatts / 1.5kVA
Max Configurable Power (Watts): 1.0kWatts / 1.5kVA
Nominal Output Voltage: 230V
Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion: Less than 5%
Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
Other Output Voltages: 220, 240
Topology: Line Interactive
Waveform type: Sine wave
Output Connections
(2) IEC Jumpers (Battery Backup)
(4) IEC 320 C13 (Battery Backup)
Transfer Time: 6ms typical : 10ms maximum
Input
Nominal Input Voltage: 230V
Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: IEC-320 C14
Input voltage range for main operations: 160 - 286V
Input voltage adjustable range for mains operation: 151 - 302V
Other Input Voltages: 220, 240
Batteries & Runtime
Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time: 3hour(s)
Replacement Battery: APCRBC133
Expected Battery Life (years): 4 - 6
RBC Quantity: 1
Battery Volt-Amp-Hour Capacity: 432
Runtime
View Runtime Graph
View Runtime Chart
Communications & Management
Interface Port(s): RJ-45 Serial, SmartSlot, USB
Control panel: Multi-function LCD status and control console
Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO): Optional
Available SmartSlot™ Interface Quantity: 1
Surge Protection and Filtering
Surge energy rating: 459Joules
Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height: 86MM, 8.6CM
Maximum Width: 432MM, 43.2CM
Maximum Depth: 477MM, 47.7CM
Rack Height: 2U
Net Weight: 28.64KG
Shipping weight: 31.91KG
Shipping Height: 251MM, 25.1CM
Shipping Width: 594MM, 59.4CM
Shipping Depth: 603MM, 60.3CM
Color: Black
Units per Pallet: 8.0
Environmental
Operating Temperature: 0 - 40 °C
Operating Relative Humidity: 0 - 95 %
Operating Elevation: 0-3000meters
Storage Temperature: -15 - 45 °C
Storage Relative Humidity: 0 - 95 %
Storage Elevation: 0-15000meters
Audible noise at 1 meter from surface of unit: 46.0dBA
Online thermal dissipation: 90.0BTU/hr
Conformance
Approvals: CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, VDE
warranty: 3 years repair or replace
