Eaton 5SC 1500i 1500VA/1050W Tower (5SC1500I)

~~$ 450.00~~ $ 439.00

Part Number: Eaton 5SC1500I
Rating (kVA/kW): 1500VA/1050W
Form factor: Tower
Topology: Line-interactive
Input nominal voltage: 230V default (220/230/240V)
Output nominal voltage: 230V
Battery rating: 12 V / 7 Ah
Receptacle: (8) C13
Product Weight: 15.2 kg
Warranty: 2years on Part.

Order Now

Specification

Part Number: Eaton 5SC1500I
Product Name: Eaton 5SC UPS
UPC: 743172045171
Product Length/Depth: 410 mm
Product Height: 210 mm
Product Width: 150 mm
Product Weight: 15.2 kg
Compliances: CE Marked, TUV
Certifications: IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, EAC, cTUVus
BATTERY
Battery type: Lead-acid maintenance-free (replaceable)
Runtime graph: View runtime graph
Battery replacement: User replaceable
Battery quantity: 3
Battery management: ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
Battery rating: 12 V / 9 Ah
Extended battery capability: No
ELECTRICAL OUTPUT

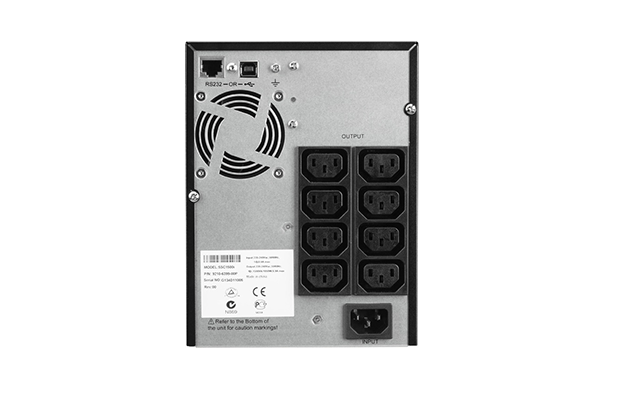

Receptacle: (8) C13
Voltage: 230V
Wattage: 1050 W
Output power factor: 0.7
Output voltage range: 230 V (+6%/-10%)
Output waveform: Sine wave
Output nominal voltage: 230V default (220/230/240V)
Feed type: 1
Topology: Line-interactive
VA rating: 1500 VA
ELECTRICAL INPUT
Input connection: C14
Input nominal voltage: 230V default (220/230/240V)
Nominal frequency: 50-60 Hz
Input voltage range: 184-276 V
Input frequency range: 45-55 Hz (50 Hz system), 55-65 Hz (60 Hz system)
COMMUNICATIONS
Includes network card: No
Communication: USB port (HID compliant), Serial port (RS232)
Ethernet interface: No

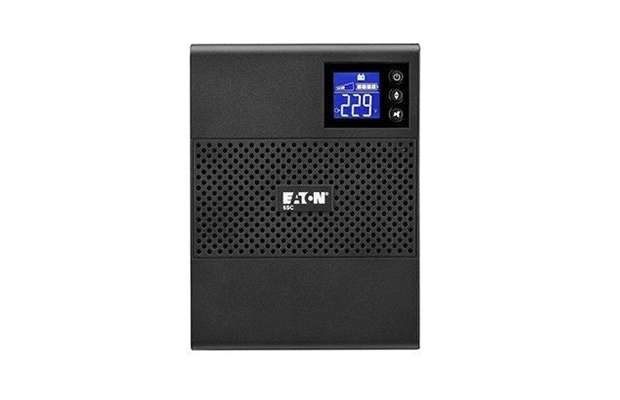

User interface: LCD Display
Potential free switch contact: No
Expansion slots: No
Software compatibility: Eaton Intelligent Power Protector
Type of interface: Other
ENVIRONMENTAL
Altitude: 2000 m
Noise level: <40 dB at 1 meter
Temperature range: 0-90% non-condensing
Relative humidity: 0-90% non-condensing
ADDITIONAL SPECIFICATIONS
Construction type: Free standing model
Enclosure: Black
Package contents:
- USB cable
- Serial cable
- (2) IEC-IEC cables
- Quickstart guide
- Safety instructions
Phase (output): 1
Auto shutdown function: Yes
Color: Black
Efficiency: 97
Rack mounting kit: No
Phase (input): 1
Warranty: 2years on Part.
