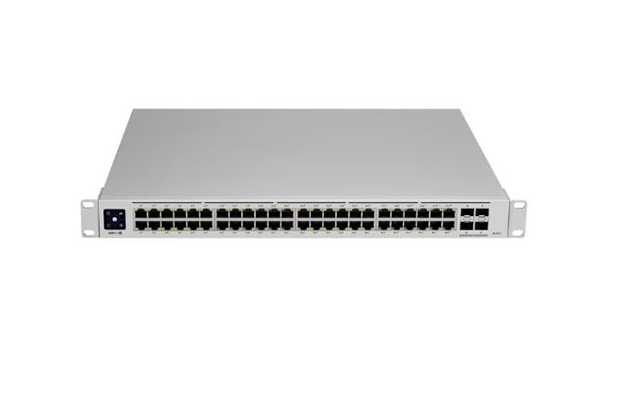

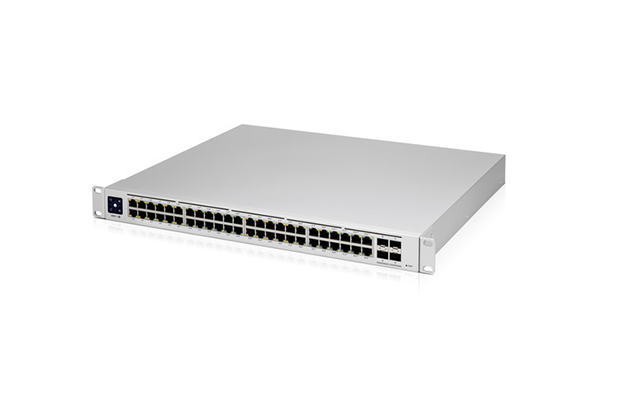

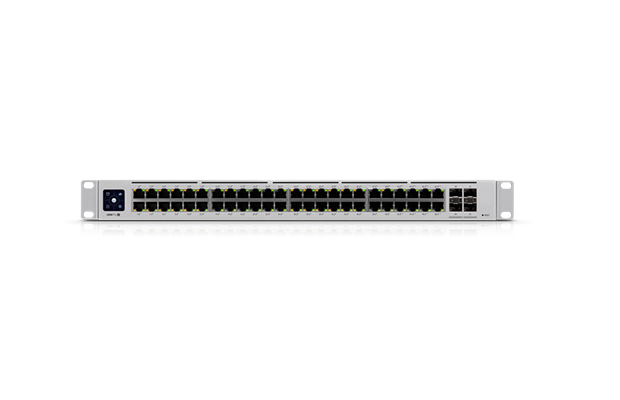

UniFi Switch Pro 48-Port Gigabit (USW-Pro-48)

~~$ 796.00~~ $ 785.00

Part Number: USW-Pro-48
48 Gigabit RJ45 ports
4 10G SFP+ ports
DC power backup-ready
Layer 3 switching
Silent cooling
This unit is non-PoE
Warranty: 1 year on part

Order Now

Specification

Part Number: USW-Pro-48
Mechanical
Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Weight: Without mounting brackets: 4 kg (8.8 lb)
With mounting brackets: 4.1 kg (9 lb)
Enclosure material: SGCC steel
Hardware
Management interface: Ethernet In-Band
Networking interface:
-(48) GbE RJ45 ports
-(4) 1/10G SFP+ ports
Total non-blocking throughput: 88 Gbps
Switching capacity: 176 Gbps
Forwarding rate: 130.944 Mpps
Power method:
-(1) Universal input, 100—240V AC, 50/60 Hz
-(1) USP-RPS DC input, 11.5V DC, 5.22A
Power supply: AC/DC, internal, 60W
Supported voltage range: 100—240V AC
Max. power consumption: 60W
ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
LCM display: (1) 1.3" touchscreen
Button: Factory reset
Shock and vibration: ETSI300-019-1.4 Standard
Ambient operating temperature: -5 to 45° C (23 to 113° F)
Ambient operating humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC
Switching Features
Layer 2 features:
-IGMP snooping
-STP / RSTP with priorities and port-level disable
-Port isolation
-Storm control
-Voice VLAN
-Port mirroring
-LACP port aggregation
-Multicast / broadcast rate limiting
-MAC address blocking
-Flow control
-802.1X control
-Jumbo frames
-Proprietary loop protection
-DHCP snooping / guarding
-Egress rate limit
-LLDP-MED
-Port restricted by MAC
-Device isolation with ACLs
Layer 3 features:
-DHCP for locally-managed networks
-DHCP relay
-Inter-VLAN routing between networks on same switch
-Static routing between local networks
-Network isolation with ACLs
LEDs
System: Status
Ethernet: Speed/link/activity
SFP+: Link/activity
RPS: Status
Application Requirements
UniFi Network: Version 5.12.11 and later
Warranty: 1Year on part.
