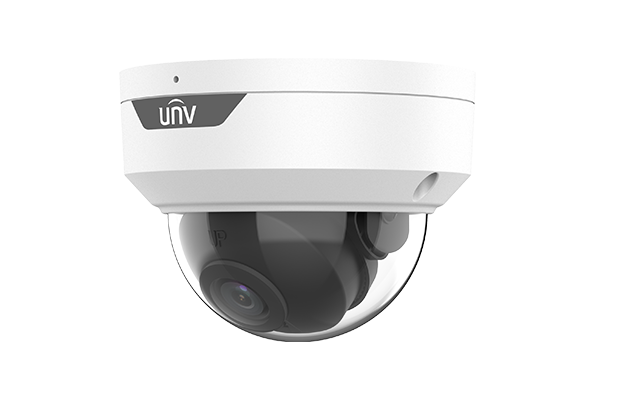

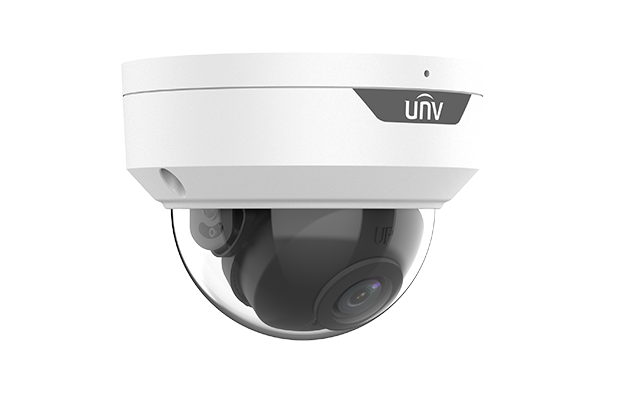

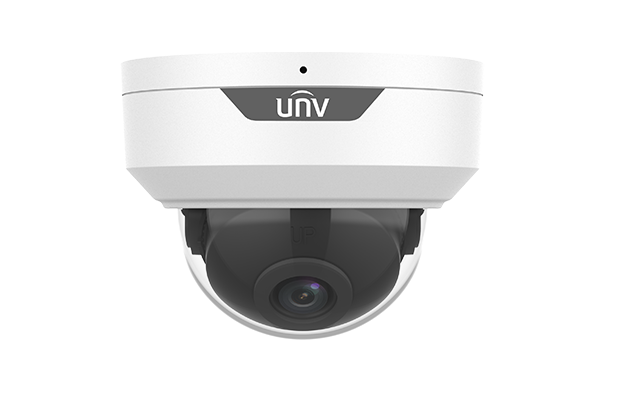

Uniview UAC-D122-AF28M 2MP LightHunter HD IR Fixed Dome Analog Camera

$ 32.00 $ 29.00
  • Part Number: UAC-T122-AF28LM
  • High quality imaging with 2MP resolution
  • TVI/AHD/CVI/CVBS
  • Supports IR-cut filter with auto-switch (ICR)
  • LightHunter monitoring with high-sensitivity sensor
  • 3D noise reduction technology delivers clean and sharp images
  • Supports 180° horizontal flip, 180° vertical flip
  • OSD configuration menu, easy to operate
  • IP67 waterproof and dustproof design, high reliability
  • OSD configuration menu in 11 languages
  • Built-in microphone for high quality audio transmission via coaxial cables
  • Supports digital defog
  • 3-Axis
  • Warranty: 1-year on Part.

Specification

  • Part Number: UAC-D122-AF28M
  • Camera
  • Max Resolution: 2 MP
  • Sensor Size: 1/2.9" CMOS
  • Min. Illumination: 0.005 lux (F1.6, AGC ON), 0 lux (IR on)
  • Lens
  • Focus: 2.8 mm, 4.0 mm
  • Lens Mount: M12
  • Angle of View (H): 101.5°, 83.8°
  • Angle of View (V): 56.9°, 42.7°
  • Angle of View (D): 117.4°, 100.1°
  • Illuminator
  • Illuminator Number: One IR illuminator
  • Illumination Distance: 30m
  • Lifetime: ≥ 60000 hours
  • Video
  • Resolution: 1080P: 1920(H)×1080(V), 720P: 1280(H) ×720(V)
  • Frame Rate: TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps
  • AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
  • CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
  • CVBS: PAL, NTSC
  • Shutter Time: PAL: 1/25s-1/50000s,NTSC: 1/30s-1/50000s
  • Image
  • Exposure Mode: Four modes: Global (default), BLC, HLC, DWDR
  • Day/Night: Three modes: Auto (default), Day, Night
  • Digital Noise Reduction: 2D/3D
  • White Balance: Two modes: Auto (default), Manual
  • WDR: DWDR
  • Smart IR: Support
  • Flip: Supports 180°horizontal flip, 180°vertical flip
  • Digital Defog: Support
  • Audio
  • Built-in Mic: Support
  • Camera Audio: TVI: 1080P@25fps, 1080P@30fps, CVI: 1080P@25fps, 1080P@30fps
  • Interface
  • Power Interface: 5.5 mm Power Interface
  • Video Output: BNC, supports TVI/AHD/CVI/CVBS
  • Operating Environment
  • Temperature: -30°C to 60°C (-22°F to 140°F)
  • Humidity: ≤ 95% RH (non-condensing)
  • Surge Protection: 4 KV for power, 4 KV for video output interfaces
  • Ingress Protection: IP67
  • IK Rating: IK10
  • General
  • Power: DC 12 V ± 25%
  • Power Consumption: MAX 3.3W
  • Mount: Wall Mount, Pole Mount, Corner Mount, Tilted Mount, Pendant Mount
  • Dimensions: Φ109mm*83mm (diameter*height)
  • Material: Metal
  • Weight: 372g(0.82lb).
