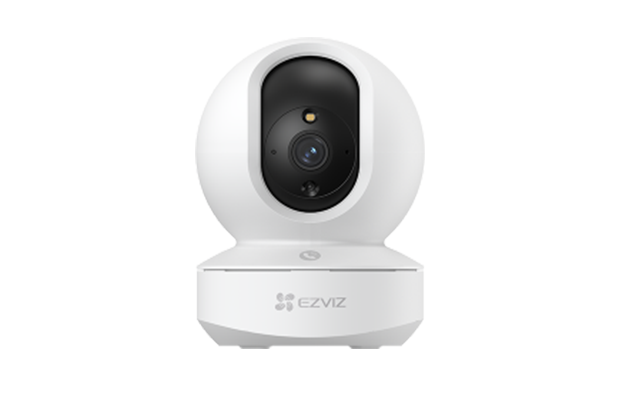

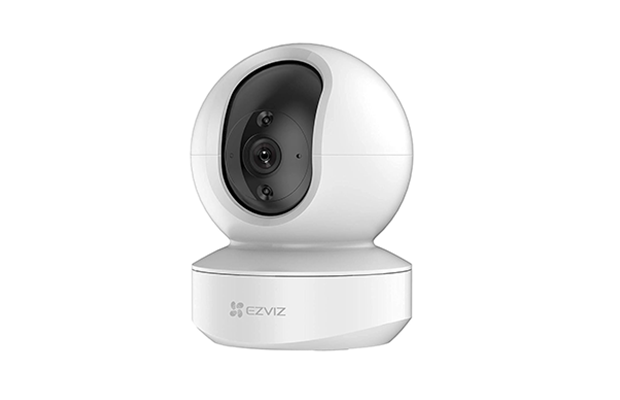

EZVIZ TY1 Pro 3K (5MP) Indoor Pan & Tilt Camera

~~$ 50.00~~ $ 45.00

Part Number: CS-TY1-R105-1J5WF
3K Resolution, Panoramic View
Patrol ModeSmart Color Night Vision
Smart Human Shape Detection
Auto-Zoom TrackingLoud Noise Detection
Two-Way Calling with Touch Button
Sleep Mode for Privacy Protection
H.265 Video Technology
Supports 2.4 / 5 GHz Dual-Band Wi-Fi
Warranty: 1-year on part.

Order Now

Specification

Part Number: CS-TY1-R105-1J5WF
Camera
Image Sensor: 1/2.7" Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Lens: 4mm @ F1.6, viewing angle: 87° (Horizontal), 53° (Vertical), 104° (Diagonal)
Lens Mount: M12
Day & Night: IR-cut filter with auto switch
DNR: 3D DNR
WDR: Digital WDR
Compression
Video Compression: H.264/H.265
Video Bit Rate: Adaptive bit rate.
Max. Resolution: 2880 × 1620
Frame Rate: Self-Adaptive during network transmission
Network
Smart Alarm: Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection
Wi-Fi Pairing: AP paring
Protocol: EZVIZ cloud proprietary protocol
Interface Protocol: EZVIZ cloud proprietary protocol
Interface
Storage: Micro SD card slot (Max. 512G)
Power: TYPE-C
Wired Network: RJ45 X 1 (10M/100M self-adaptive Ethernet port)
Wi-Fi
Standard: IEEE802.11a, 802.11b, 802.11g, 802.11n
Frequency Range: 2.4G: 2400~2483.5MHz 5G: 5150MHz-5250MHz
Channel Bandwidth: Supports 20MHz
Security: WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate: 11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11a 54Mbps, 11nHT20 MCS7
Output Power(EIRP): 19 dBm
Antenna Gain: 1.9 dBi
General
Operating Conditions: -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
Power Supply: DC 5V/2A
Power Consumption: MAX. 8W
IR Range: MAX. 10 meters(32.81ft)
Dimensions: 88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”)
Packaging Dimensions: 103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”)
Bare Weight: 213 g (0.47 lb)
In the box
In the box
- TY1 Pro 3K Camera
- Power Adapter
- Power Cable
- Drill Template
- Mounting Plate
- EZVIZ Screw Kit
- Regulatory Information
- Quick Start Guide
Certifications
Certifications: CE / UL / WEEE / REACH / RoHS
Warranty: 1-year on part.
