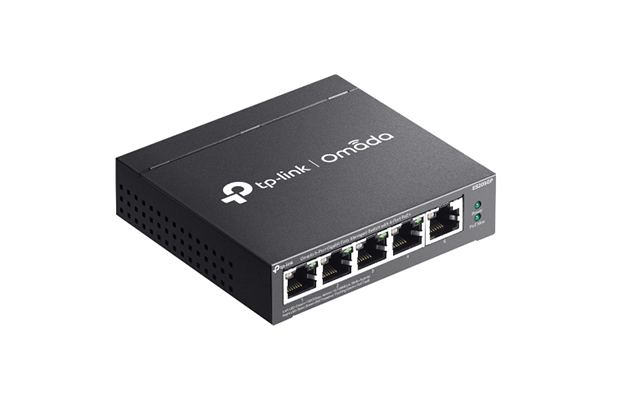

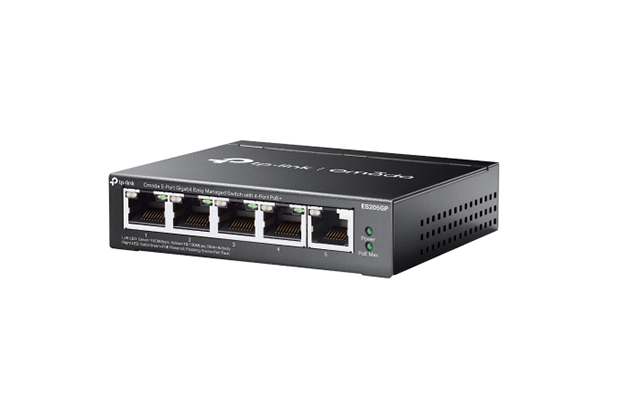

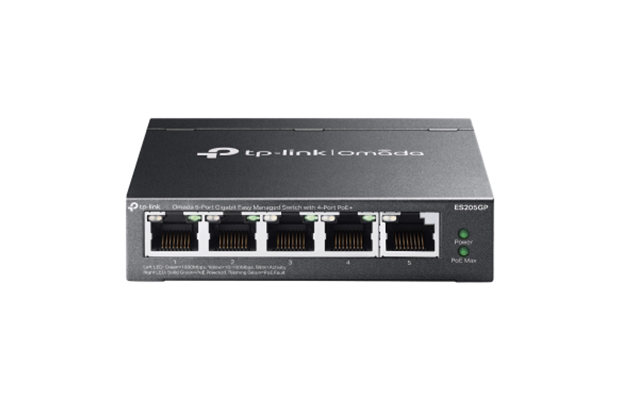

TP-Link ES205GP Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

~~$ 55.00~~ $ 50.00

Part Number: B14VFKG
5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+)
65W Power Budget, with up to 30W for each PoE port*
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app†
Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design
Warranty: 3 Years on Part.

Order Now

Specification

Part Number: ES205GP
HARDWARE FEATURES
Interface
- 5× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at PoE+ and 802.3af PoE)
- Auto-Negotiation/Auto MDI/MDIX
Fan Quantity: Fanless

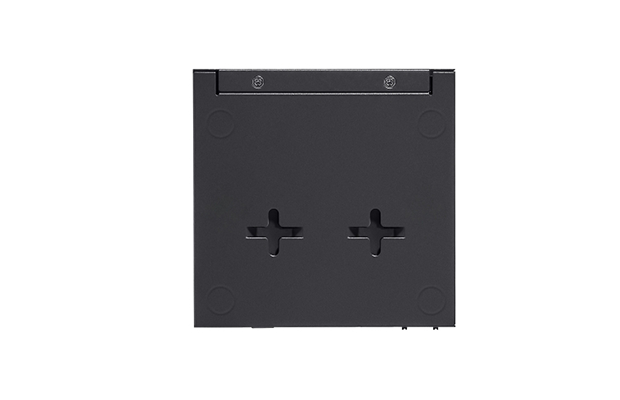

Installation: Desktop, Wall Mount
Physical Security Lock: √

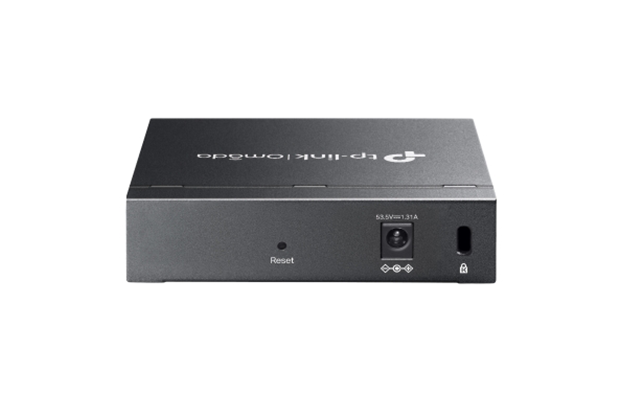

Power Supply: DC Power Adapter (Output: 53.5 VDC/ 1.31 A)
PoE Ports (RJ45):
- Standard: 802.3af PoE and 802.3at PoE+ compliant
- PoE Ports: 4 ports
- PoE Budget: 65 W available for all PoE+ ports, 30W max per port
- PoE Auto Recovery‡
- Up to 250m PoE transmission distance**
Dimensions ( W x D x H ): 3.9×3.9×1.0 in (100×98×25 mm)
Surge Protection: ±6kV
PERFORMANCE
Switching Capacity: 10 Gbps
Packet Forwarding Rate: 7.4 Mpps
MAC Address Tabl: 8K
Packet Buffer Memory: 4 Mbit
Jumbo Frame: 15 KB
SOFTWARE FEATURES
Quality of Service:
- Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control△
L2 Features:
• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
L2 Multicast:
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN:
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method: Store-And-Forward
MANAGEMENT
Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features:
- Web-based GUI
- DHCP Client
- Cable Diagnostics
- Automatic Device Discovery†
- Batch Configuration†
- Batch Firmware Upgrading†
- Unified Configuration†
OTHERS
Certification: FCC, CE, RoHS
Package Contents:
- ES205GP
- Power Adapter
- Installation Guide
- Rubber Feet
Environment:
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Warranty: 3 Years on Part.
