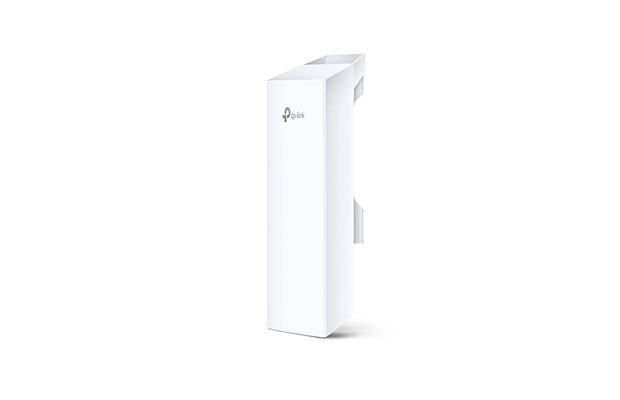

TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE

~~$ 60.00~~ $ 55.00

Part Number: CPE510
Brand Name: TP-Link CPE510
Warranty: 3 Year on part.

Order Now

Specification

HARDWARE FEATURES:
Processor: Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
Memory: 64MB DDR2 RAM, 8MB Flash
Interface: 1 10/100Mbps Shielded Ethernet Port (Passive PoE in), 1 Grounding Terminal, 1 Reset Button
Power Supply: Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins), Voltage range: 16-27VDC
Power Consumption: 10.5 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H ): 224 x 79 x 60 mm
Antenna Type: Built-in 13dBi 2x2 Dual-polarized Directional Antenna, Beam Width: 45° (H-Plane) / 30° (E-Plane)
Protection: 15KV ESD Protection, 6KV Lightning Protection
Enclosure: Outdoor ASA stabilized plastic material, IPX5 waterproof Certification
WIRELESS FEATURES:
Wireless Standards: IEEE 802.11a/n (with Pharos MAXtream disabled)
Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds:
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency: 5.15~5.85GHz, Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Transmission Power: 23dBm/200mw (Adjustable power by 1dBm)
SOFTWARE FEATURES:
Wireless Configurations:
Pharos MAXtream TDMA Technology
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management:
Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
POE ADAPTER FEATURES:
Dimensions(W x D x H): 110*57*33.5mm
Input Current: 0.8A Max @ 100VAC
Input Voltage: 100VA~240VAC @ 50Hz~60Hz
Output: 24VDC, 1.0A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency: >80%
Output Voltage: 24VDC(+4,5pins; -7,8pins)
Input: 100-240VAC, 50/60Hz
Power Status LEDs: 0~0.8A: Green 0.8A~1.0A: Red
Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Interfaces: 1 AC Jack with Earth Ground, 1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
Button: Remote Reset Button
OTHERS:
Package Contents:
Outdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
System Requirements:
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Environment:
Operating Temperature: -30°C~70°C (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Warranty: 1 year on Part.
