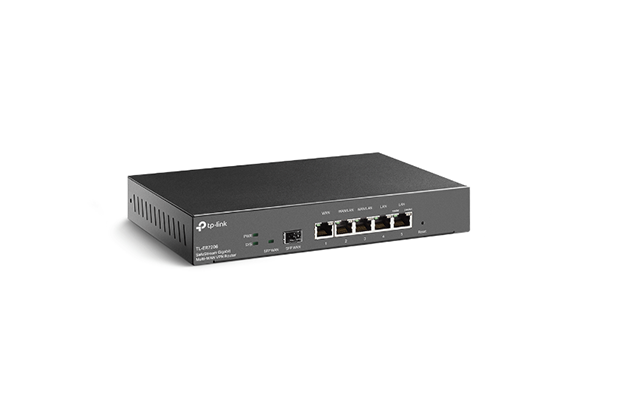

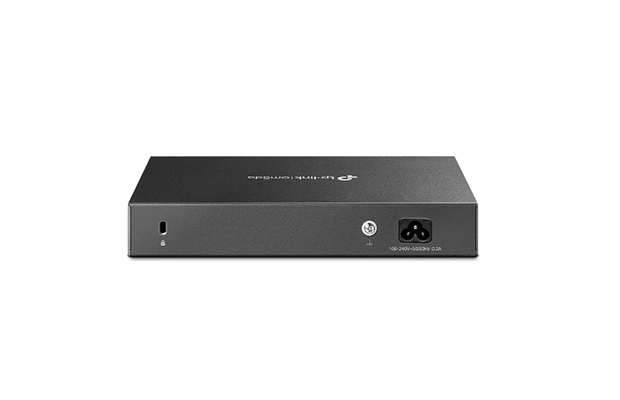

TP-Link TL-ER7206 SafeStream Gigabit Multi-WAN VPN Router

~~$ 110.00~~ $ 105.00

Part Number: TL-ER7206
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
Up to 4 WAN Ports: 1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.
Highly Secure VPN: Supports up to 100× LAN-to-LAN IPsec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections.
Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
Warranty: 2 year on Part.

Order Now

Specification

Part Number: TL-ER7206
HARDWARE FEATURES
Standards and Protocols:
IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface:
1 Fixed Gigabit SFP WAN Port
1 Fixed Gigabit RJ45 WAN Port
2 Fixed Gigabit RJ45 LAN Ports
2 Changeable Gigabit RJ45 WAN/LAN Ports
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button: Reset Button
Power Supply: 100–240 V~50/60 Hz
Flash: SPI 4MB + NAND 128MB
DRAM: 512MB
LED: PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensions ( W x D x H ): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
PERFORMANCE
Concurrent Session: 150,000
IPsec VPN Throughput: 291.6 Mbps
BASIC FUNCTIONS
WAN Connection Type:
Static/Dynamic IP
PPPoE
PPTP
L2TP
MAC Clone: Modify WAN/LAN MAC Address†
DHCP:
DHCP Server
DHCP Address Reservation
Multi-IP Interfaces*
Multi-Net DHCP*
IPv6: Developing‡
VLAN: 802.1Q VLAN
IPTV: IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
ACL: IP/Port/Protocol/Domain Name Filtering
Advanced Routing:
Static Routing
Policy Routing
Bandwidth Control:
IP/Port-based Bandwidth Control
Guarantee & Limited Bandwidth
Load Balance:
Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing§, Failover)
Online Detection
NAT:
One-to-One NAT§
Multi-Net NAT
Virtual Server
Port Triggering§
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security:
SPI Firewall
VPN Passthrough
FTP/H.323/PPTP/SIP/IPsec ALG
DoS Defence, Ping of Death
Local Management
Session Limit: IP-based Session Limit
VPN
IPsec VPN:
100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IKEv1/v2*
MD5, SHA1 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
PPTP VPN:
PPTP VPN Server
10 PPTP VPN Clients
50 Tunnels
PPTP with MPPE Encryption
L2TP VPN:
L2TP VPN Server
10 L2TP VPN Clients
50 Tunnels
L2TP over IPSec
OpenVPN:
OpenVPN Server*
10 OpenVPN Clients*
50 OpenVPN Tunnels*
SECURITY
Filtering:
WEB Group Filtering§
URL Filtering
Web Security§
ARP Inspection:
Sending GARP Packets§
ARP Scanning§
IP-MAC Binding§
Attack Defense:
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
Access Control: Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication:
No Authentication
Simple Password*
Hotspot（Local User / Voucher* / SMS* / Radius*）
External Radius Sever
External Portal Sever*
Facebook*
MANAGEMENT
Omada App: Yes
Centralized Management:
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance:
Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3*
Diagnostics (Ping & Traceroute)§
NTP Synchronize§
Syslog Support
Management Features:
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
ZTP (Zero-Touch Provisioning)**
OTHERS
Certification: CE, FCC, RoHS
Package Contents:
TL-ER7206
Power Cord
Quick Installation Guide
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Environment:
Operating Temperature: 0–40 ℃ (32–104 ℉);
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Warranty: 2 year on Part.
