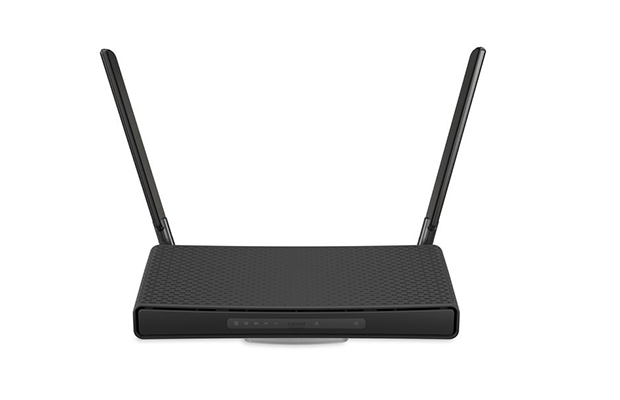

Mikrotik C53UiG+5HPaxD2HPaxD (hAP ax³)

~~$ 176.00~~ $ 165.00

Part Number: C53UiG+5HPaxD2HPaxD
4-core 1.8 GHz CPU, 1GB RAM
built-in 2.4 GHz 802.11b/g/n/ax dual-chain
built-in 5 GHz 802.11a/n/ac/ax dual-chain
Warranty: 1 year on part.

Order Now

Specification

Part Number: C53UiG+5HPaxD2HPaxD
Specifications
Details
Architecture: ARM 64bit
CPU: IPQ-6010
CPU core count: 4
CPU nominal frequency: auto (864 - 1800) MHz
Switch chip model: IPQ-6010
RouterOS license: 6
Operating System: RouterOS v7
Size of RAM: 1 GB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
IPsec hardware acceleration: Yes
Wireless capabilities
Details
Wireless 2.4 GHz Max data rate: 574 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz: 3.3
Wireless 2.4 GHz chip model: QCN-5022
Wireless 2.4 GHz generation: Wi-Fi 6
Wireless 5 GHz Max data rate: 1200 Mbit/s
Wireless 5 GHz number of chains: 2
Wireless 5 GHz standards: 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz: 5.5
Wireless 5 GHz chip model: QCN-5052
Wireless 5 GHz generation: Wi-Fi 6
WiFi speed: AX1800

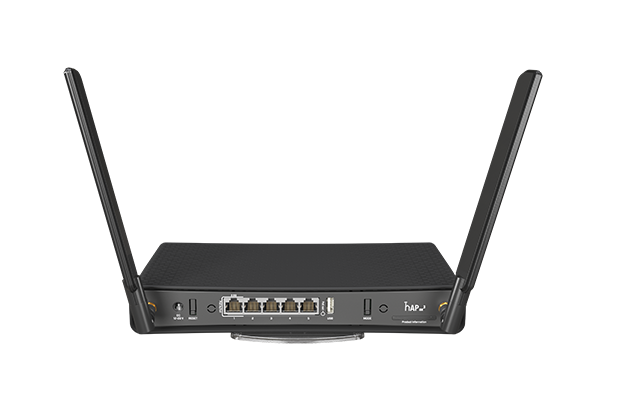

Ethernet
Details
10/100/1000 Ethernet ports: 4
Number of 1G Ethernet ports with PoE-out: 1
Number of 2.5G Ethernet ports: 1
Peripherals
Details
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB 3.0 type A
Max USB current (A): 1
Powering
Details
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-28 V
Max power consumption: 38 W
Max power consumption without attachments: 15 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 18-28 V
PoE-out
Details
PoE-out ports: Ether 1
PoE out: Passive PoE
Max out per port output (input 18-30 V): 0.625 A
Max total out (A): 0.625 A
Total output current: 0.625
Total output power: 15
Certification & Approvals
Details
Certification: CE, FCC, IC, EAC, ROHS
IP: 20
Warranty: 1Year on Part.
