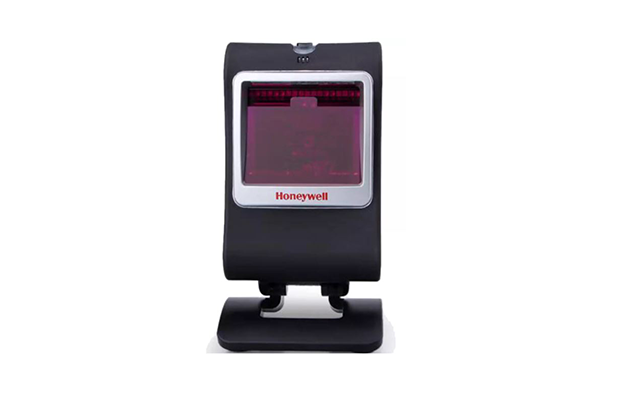

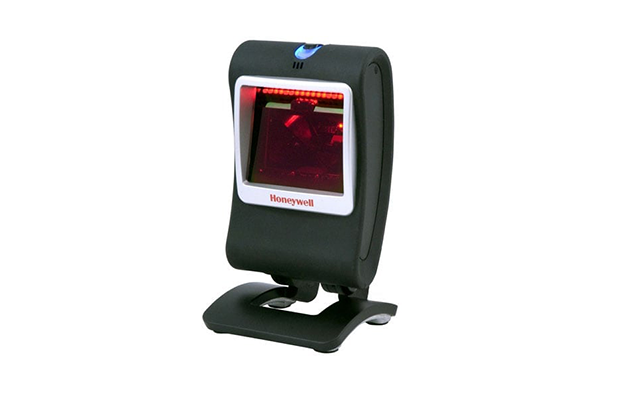

Honeywell MK7580-30B38-02-A Barcode Scanner

$ 220.00 $ 210.00
  • Part Number: MK7580-30B38-02-A
  • 1D, PDF and 2D
  • USB kit with Straight Cable and US Power Supply
  • Horizontal: 46 degrees
  • Vertical: 28 degrees
  • Warranty: 1 Year on part
Order Now

Specification

  • Part Number: MK7580-30B38-02-A
  • Mechanical
  • Dimensions (LxWxH): 80 mm x 83 mm x 150 mm (3.2? x 3.3? x 5.9?)
  • Weight: 340 g (12 oz)
  • Electrical
  • Input Voltage: 5.5 VDC ± 0.25 V
  • Operating System: 2.0 W (400 mA @ 5 V)
  • Standby Power: 0.5 W (100 mA @ 5 V)
  • Host System Interfaces: USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
  • Auxiliary Ports: EAS with interlock (EAS model)
  • Environmental
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
  • Humidity: 0% to 95% relative humidity, non-condensing
  • Drop: Designed to withstand 1.5 m (5´) drops
  • Environmental Sealing: Sealed to resist airborne particulate contaminants
  • Light Levels: 100,000 Lux
  • Scan Performance
  • Scan Pattern: Area Image (832 x 504 pixel array)
  • Motion Tolerance: 200 cm/s (78 in/s) for 13 mil UPC at optimal focus
  • Scan Angle: Horizontal: 46°; Vertical: 28°
  • Print Contrast: 20% minimum reflectance difference
  • Pitch, Skew: 70°, 75°
  • Decode Capability: Reads standard 1D, PDF, 2D, Postal and OCR symbologies
  • *Note: Decode capabilities dependent on kit configuration
  • Warranty: 1 Year on part
