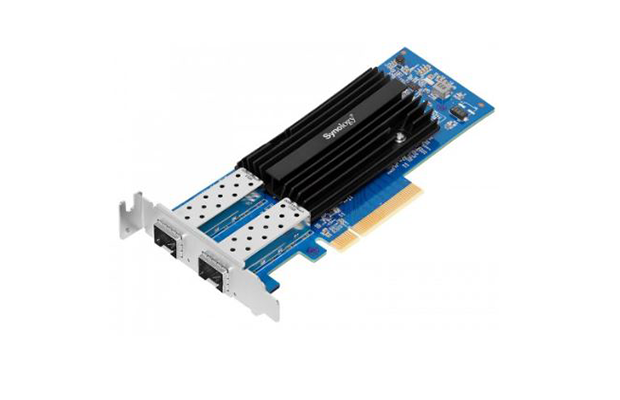

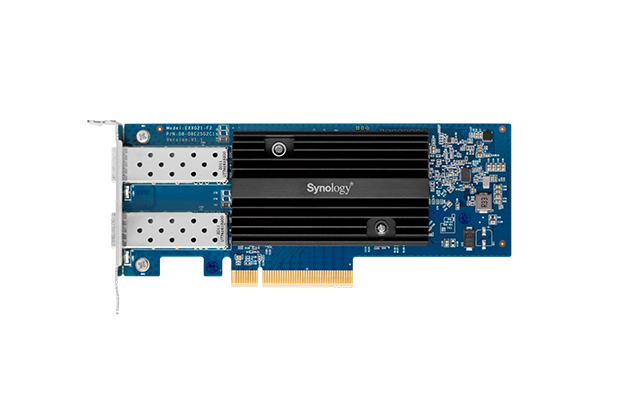

Synology Dual-port 10 Gigabit SFP+ PCIe 3.0 x8 Ethernet adapter (E10G21-F2)

$ 310 .00 $ 305.00
  • Synology Dual-port 10 Gigabit SFP+ PCIe 3.0 x8 Ethernet adapter (E10G21-F2)

Specification

  • Part Number: E10G21-F2
  • Hardware
  • Host Bus Interface PCIe Gen 3.0 x8 (x4 link)
  • Bracket Height Low-profile and full-height
  • Size (Height x Width x Depth) 69 mm x 168 mm x 17.3 mm
  • Operating Temperature 0°C to 40°C (32°F to 104°F)
  • Storage Temperature-20°C to 60°C (-5°F to 140°F)
  • Relative Humidity 5% to 95% RH
  • Note: Supports PCIe upconfigure to reduce link width to conserve power
  • Network
  • Specification Compliance:
  • - IEEE 802.3ae 10 Gbps Ethernet
  • - IEEE 802.3ad Link Aggregation
  • Connector: SFP+
  • Data Transfer Rate: 10 Gbps
  • Network Operation Mode: Full Duplex
  • Supported Features
  • - Support for 1.5 to 9 KB Jumbo Frames
  • - Offloaded storage over Ethernet
  • - Non-offloaded storage over Ethernet
  • - TCP/UDP Checksum Offloading
  • - Large Send Offload (LSO)
  • - Generic Receive Offload (GRO)
  • - Generic Segmentation Offload (GSO)
  • - TCP Segmentation Offload (TSO)
  • - Receive Side Scaling (RSS)
  • - Transmit Side Scaling (TSS)
