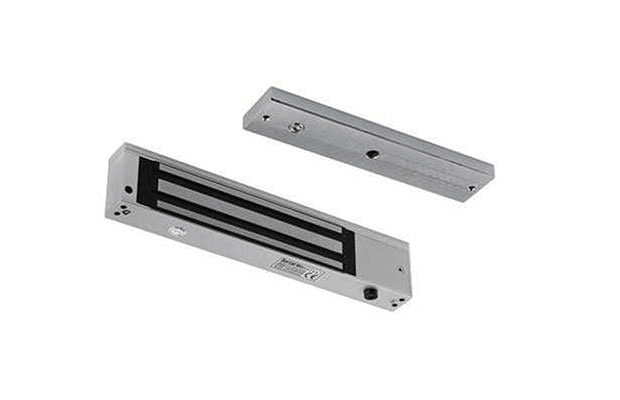

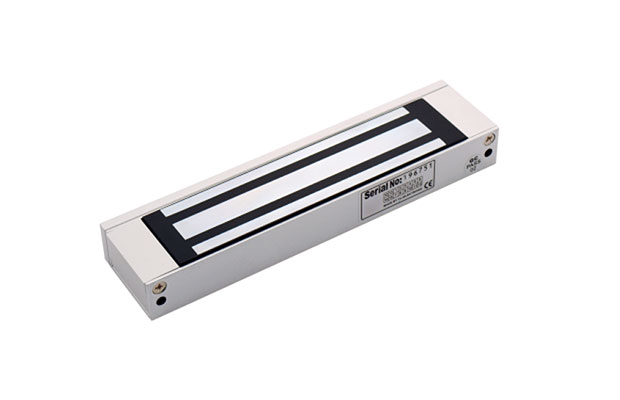

Hikvision DS-K4H250S Single-door Magnetic Lock

$ 42.00 $ 39.00
  • Part Number: DS-K4H250S
  • The magnetic lock supports static linear thrust of 272 kg (599.8 lbs)
  • Power supply can be customized to be 12 VDC or 24 VDC, (default voltage is 12 VDC)
  • Equipped with internal voltage dependent resistor (MOV)
  • LED indicator displays door lock status
  • Abrasion-proof materials
  • Warranty: 1-years on part.
Order Now

Specification

  • Part Number: DS-K4H250S
  • Indicator: Green: Locked
  • Indicator: Red: Unlocked
  • Power supply: 12 VDC/500 mA, 24 VDC/250 mA
  • Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity: 0 to 95% (relative Humidity)
  • Dimensions: Lock body: 240 mm × 49 mm × 25.5 mm (9.45" × 1.93\" × 1.00\")
  • Dimensions: Armature Plate: 180 mm × 38 mm × 11 mm (7.1 × 1.5\" × 0.4\")"
  • Weight: 2.1kg (4.63 lb)
  • Material:
  • - Shell: hard Anodizing Electroplating Operated
  • - Lock Body: eco-friendly Zinc with Electroplating Operated
  • Armature Plate: eco-friendly Zinc with Electroplating Operated
  • Thrust: Max. 272 kg (599.8 lb) linear thrust
  • Door type: Single leaf, double leaf, wooden door, glass door, metal door, fireproof door
  • Signal output: Dry Contact Signal Output, Support Maximum Power Rate of 3A, NO Output While Locking and NC Output While Unlocking
