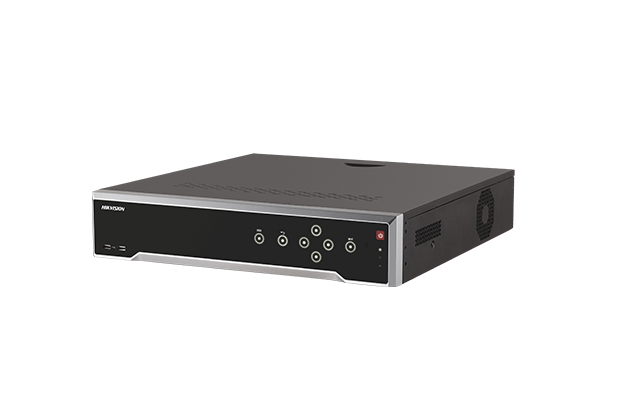

Hikvision DS-7716NI-K4/16P 16-ch 16PoE 4K NVR

~~$ 330.00~~ $ 319.00

Part Number: DS-7716NI-K4/16P
16-ch 1.5U 4K NVR
H.265+/H.265/H.264+/H.264 video formats
Up to 160 Mbps high incoming bandwidth
Up to 2-ch @ 8MP or 4-ch @ 4MP or 8-ch @ 1080P decoding capacity
4 HDDs for continuous video recording
Plug & Play with 16 Power-over-Ethernet(PoE) interfaces
Warranty: 1 year on part

Order Now

Specification

Part Number: DS-7716NI-K4/16P
Video And Audio
IP Video Input: 16-ch
Incoming Bandwidth: 160 Mbps
Outgoing Bandwidth: 160 Mbps
HDMI Output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode: HDMI/VGA independent output
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding Format: H.265/ H.265+/H.264/H.264+
Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback: 16-ch
Decoding Capability: 2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
Stream Type: Video, Video & Audio
Audio Compression: G.711ulaw/G.711alaw/G.722/G.726
Network
Remote Connection: 64-ch
Network Protocol: TCP/IP, DHCP, IPv4, Hik-Connect , DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power: ≤ 200 W
Standard: IEEE 802.3 af/at
Auxiliary Interface
Serial Interface: 2 RS-485 (half-duplex), 1 RS-232
SATA: 4 SATA interfaces
Capacity: Up to 10 TB capacity for each HDD
Alarm In/Out: 16/ 4 (16/9 is optional)
USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Ctrl 12V: N/A (optional to support)
DC 12V: N/A (optional to support)
General
Power Supply: 100 to 240 VAC, 50 to 60Hz
Consumption: ≤ 20 W (without HDD and PoE off)
Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity: 10% to 90%
Dimension (W × D × H): 445 × 400 × 71 mm ( 17.5"× 15.7" × 2.8")
Weight: ≤ 5 kg (without HDD, 11 lb.)
Certification
FCC: Part 15 Subpart B, ANSI C63.4-2014
CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Obtained Certification: CE, KC, WEEE, REACH, ROHS, CB, LOA
Warranty: 1 Year on part.
