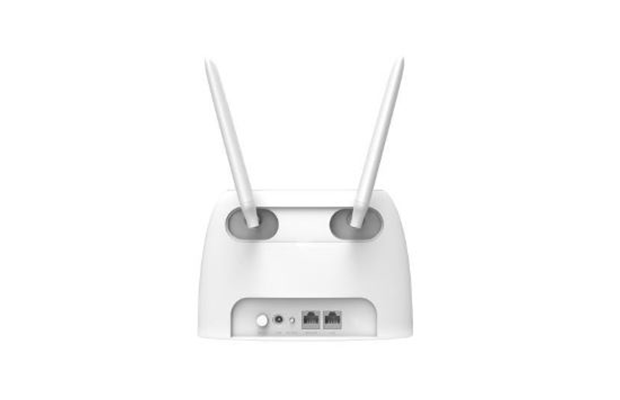

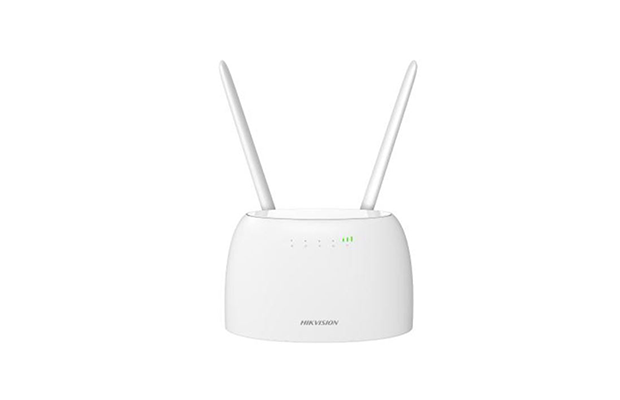

Hikvision DS-3WR4G12C AC1200 4G CAT4 Wireless Router

~~$ 48.00~~ $ 45.00

Part Number: DS-3WR4G12C/EU
AC1200 4G CAT4 Wireless Router
AC1200 Dual-band Wi-Fi
4G Boost Faster Speed
Instantly Access a Mobile Network With a SIM Card
Warranty: 1 year on part.

Order Now

Specification

Part Number: DS-3WR4G12C/EU
General
Product Dimensions (W × H × D): 233.9mm×151.4mm×40.3mm
Package Dimensions (W × H × D): 405mm×307mm×80mm
Net Weight: 0.560kg
Packing List:
4G LTE Router × 1
Power Adapter × 1
Detachable Antenna × 2
Ethernet Cable × 1
SIM Card Adapter × 1
Quick Start Guide × 1
Regulatory Compliance and Safety Information × 1
Packing Method: Single pack
Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity: 10% to 90% RH non-condensing
Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Storage Humidity: 5% to 90% RH non-condensing
Installation Mode: Desktop installation
Max. Power Consumption: ≤ 9 W
Gross Weight: 0.620 kg
Wireless Parameter
Max. Transmission Rate of Air Interface:
≤ 1167 Mbps
2.4 GHz: 300 Mbps
5 GHz: 867 Mbps
Wireless Standard: IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz
Working Frequency Band: 2.4 GHz，5 GHz
Transmitting Power: 16dBm @ 2.4G-mcs7、17dBm @ 5G-mcs9
Wireless Performance: 2*2 MIMO supported
Receiving Sensitivity:
-58 ± 2 dB@AC80 -MCS9
-84 ± 2 dB@AC80 -MCS0
Antenna: 2 high gain antennas
Network Type: LTE CAT.4
Mobile Standards: FDD LTE, TDD-LTE,WCDMA
Mobile Bands 4G FDD LTE: B1/B3/B7/B8/B20/B28AB,4G TDD-LTE: B38/B40/B41,3G WCDMA: B1/B8
4G Speed DL: 150 Mbps, Upload: 50 Mbps
Hardware Parameter
Network Interface: 2 × RJ45, 10/100 Mbps auto-negotiation
LED Indicator: power LED*1、internet LED*1、WiFi LED*1、RJ45 LED*1、LTE LED*3
Reset: Reset button*1
Power Supply Method: 9 VDC, 1 A power adapter power supply
Power Specifications: 9 VDC, 1 A
Software Function
Application Function: 3G/4G Route Mode, Wireless Router Mode, and AP Mode supported
DHCP Server supported
Guest Network Configuration supported
Signal Adjustment supported
WiFi Schedule supported
Security Mode: WPA-PSK, WPA2-PSK, WPA and WPA2 supported
Security Mechanism: Hide SSID
Management Method: Web
Upgrade: Web
System Log: System log
Warranty: 1 year on part.
