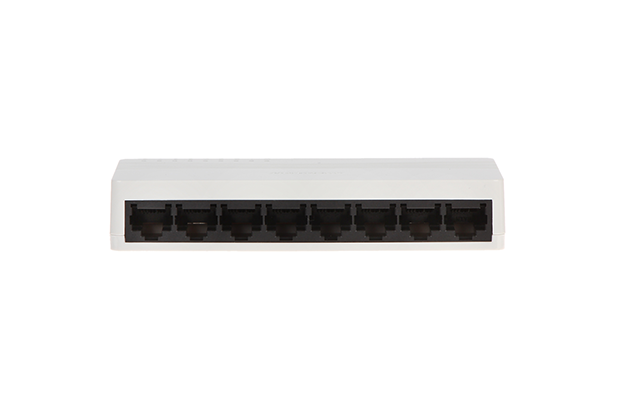

Hikvision DS-3E0508D-O 8-Port Gigabit Plastic Switch

$ 28.00 $ 25.00
  • Part Number: DS-3E0508D-O
  • 8 x 10/100/1000 Mbps ethernet port
  • Supports MDI/MDIX
  • Store-and-forward switching
  • Supports MAC address auto-learning and aging
  • Simple, compact body design
  • Supports desktop and wall-mounting installation
  • Plug & play, easy to use.
  • Warranty: 1 Year on part.
Order Now

Specification

  • Part Number: DS-3E0508D-O
  • General
  • Shell: ABS
  • Net Weight: 0.093 kg (0.205 lb)
  • Dimensions (W × H × D): 124.00 mm × 25.00 mm × 61.00 mm (4.88'' × 0.98'' × 2.40'')
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 5 VDC, 1 A
  • Installation Mode: Desk-Mounted
  • Max. Power Consumption: 5 W
  • Surge Protection: 2 KV
  • Network Parameters
  • Ports: 8 × Gigabit RJ45 port
  • MAC Address Table: 4 K
  • Switching Capacity: 16 Gbps
  • Packet Forwarding Rate: 11.90 Mpps
  • Internal Cache: 1.5 Mbits
  • Approval
  • EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • Chemistry CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
  • Warranty: 1 Year on part.
