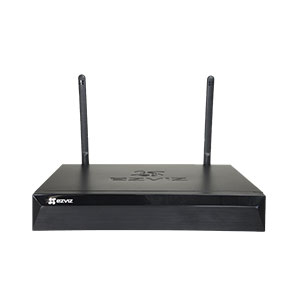

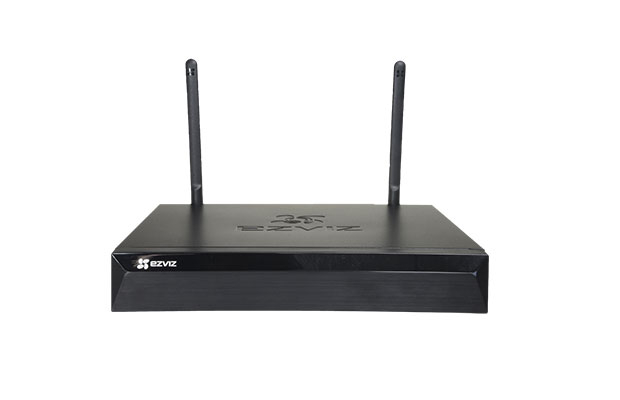

EZVIZ X5S-4W Wireless NVR

~~$ 60.00~~ $ 55.00

Part Number: CS-X5S-R100-4W
HDMI/VGA Output Supports High
Resolution Cameras of Up to 3K Video Quality
Wi-Fi Range Up to 100 m (300 ft)
Supports ONVIF Conformant Camera
H.265 Video Technology
Up to 8TB Storage
Warranty: 1 Year on part.

Order Now

Specification

Part Number: CS-X5S-R100-4W
IPC Access Capability
Wireless/Wired IPC Access Capability: 3K *4
Wired IPC Access Capability: 3K *4 (X5S-4W)
Network Parameters
Antenna Number: 2
Max Wireless Range: 100m
Radio Frequency: 2.4G
Ethernet Port: One 10/100M adaptable Ethernet interface
Required Access Bandwidth: 50 Mbps
Video Output
VGA: 1 channel (identical to HDMI output) resolution up to 1920*1080/60Hz
HDMI: 1 channel resolution up to 2592*1944/30HZ
Audio/Video Codec
Recording Resolution: 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF
Video Encoding: H.265, H.264
Decode Playback: Supports 4*3K
Video Recording Management
Video Recording Mode: Manual video recording; Motion detection recording; Scheduled video recording; Event triggered recording
Backup Mode: Hard disk backup, Internet application backup
Playback Mode: Instant playback ; Normal playback ; Event playback ; Tag playback; Log event playback
Open Protocol
Open Protocol Support: HIKVISION, ONVIF (V.2.5)
HDD
Interface Type: One built-in SATA port
Capability: Supports 1TB to 8TB 3.5-inch HDD

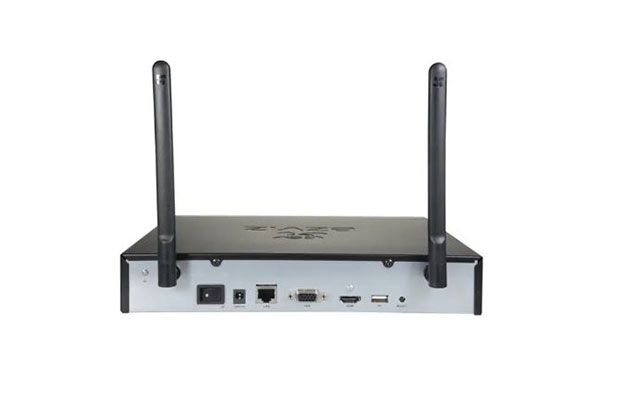

External Interface
Audio Input/ Output: Not support
Hardware Reset: Supports
USB2.0 Interface: 2
Dimensions
Product Dimensions: 235 × 270 × 44.5 mm (9.25 × 10.6 × 1.75 inch)
Packaging Dimensions: 387 × 362 × 75 mm (15.2 × 14.3 × 3 inch)
Power Supply
DC: 12V/1.5A
Consumption
Standby status: ≤8W
Weight
Net Weight: 932 g
In the box
In the box
- X5S NVR × 1
- Power Adapter × 1
- Mouse × 1
- Screw Kit × 1
- Regulatory Information × 2
- Quick Start Guide × 1
Certifications
Certifications: CE / UL / RoHS / WEEE / REACH
