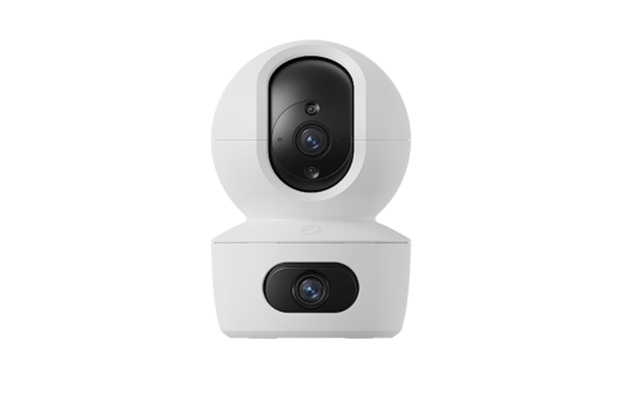

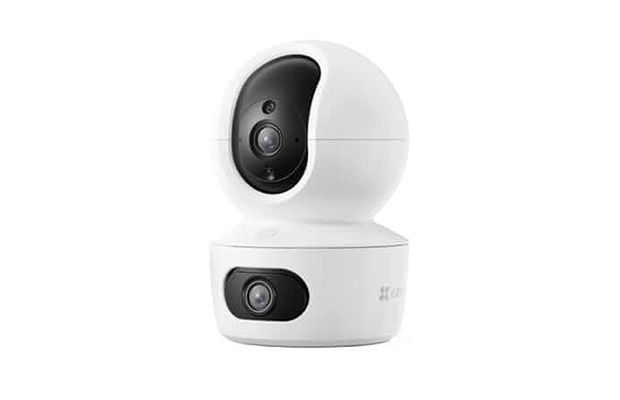

EZVIZ TY7 Dual 2K⁺ Dual-Lens Pan & Tilt Wi-Fi Camera

~~$ 64.00~~ $ 59.00

Part Number: CS-TY7 (4MP)
Dual 2K+ Resolution (2560 × 1440)
1/3" Progressive Scan CMOS
Self-adaptive shutter
2.8mm@F1.6 Lens
IR-cut filter with auto-switching
Warranty: 1-year on part.

Order Now

Specification

Part Number: CS-TY7 (4MP)
Model: CS-TY7-R100-8G44WF
Camera
Resolution: Dual 2K+ Resolution
Image Sensor: 1/3" Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Wide-angle Lens: 2.8mm@F1.6 , view angle: 108°(Diagonal), 92° (Horizontal), 50°(Vertical)
PT Lens: 6mm@F1.6 , view angle: 60°(Diagonal), 51° (Horizontal), 28°(Vertical)
Lens Mount: M12
Day & Night: IR-cut filter with auto-switching
DNR: 3D DNR
WDR: Digital WDR
Compression
Video Compression: H.264/H.265
Video Bit Rate: Adaptive bit rate.
Network
Smart Alarm: Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection
Wi-Fi Pairing: AP paring
Protocol: EZVIZ cloud proprietary protocol
Interface Protocol: EZVIZ cloud proprietary protocol
Max. Resolution: 2560 × 1440
Frame Rate: Self-Adaptive during network transmission
Interface
Storage: Micro SD card slot (Max. 512G)
Power: TYPE-C

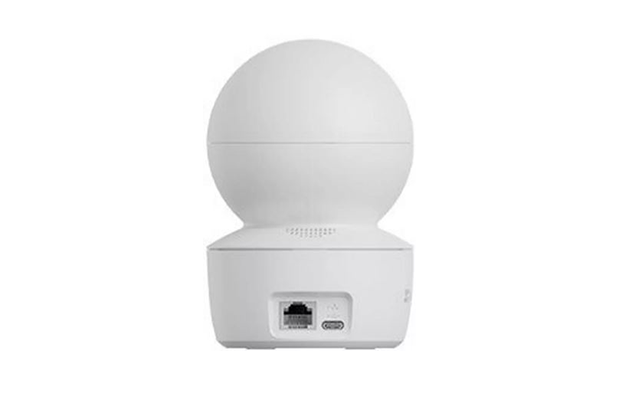

Wired Network: RJ45 X 1 (10M/100M self-adaptive Ethernet port)
Wi-Fi
Standard: IEEE802.11a, IEEE802.11b, 802.11g, 802.11n,802.11ac 802.11ax
Frequency Range: 2.4GHz: 2.4 GHz ~ 2.4835 GHz 5GHz: 5.15GHz~5.25GHz
Channel Bandwidth: 2.4GHz Supports 20MHz 5GHz Supports 80MHz
Security: WPA-PSK, WPA2-PSK, WPA3-Personal
Transmission Rate: 2.4GHz Max. Rate Support: 11b_11M，11g_54M, 11n_MCS7_20M，11ax_MCS11_20M 5.15-5.25GHz Max. Rate Support: 11a_54M, 11n_MCS7_20-40M，11ac_MCS9_20-40-80M, 11ax_MCS11_20-40-80M
Output Power(EIRP): 20 dBm
Antenna Gain: 2.56dBi@2.48GHz，3.18dBi@5.22GHz
General
Operating Conditions: -10°C to 45°C ( -14 °F to 113 °F ) Humidity 95% or less (non-condensing)
Power Consumption: 8W max
Power Supply: DC 5V/2A
IR Range: MAX. 10 meters (32.81ft)
Dimensions: 88 × 88 × 131.5 mm (3.46 × 3.47 ×4.69 in)
Package Dimensions: 105 × 105 × 200 mm (4.13 × 4.13 × 7.87 in)
Net Weight: 270 g
Bare Weight: 530 g
In the box
In the box
- Camera
- Power Adapter
- Power Cable
- Drill Template
- Mounting Plate
- Screw Kit
- Regulatory Information
- Quick Start Guide
Certifications
Certifications: CE / WEEE / RoHS / REACH / UL
Warranty: 1-year on part.
