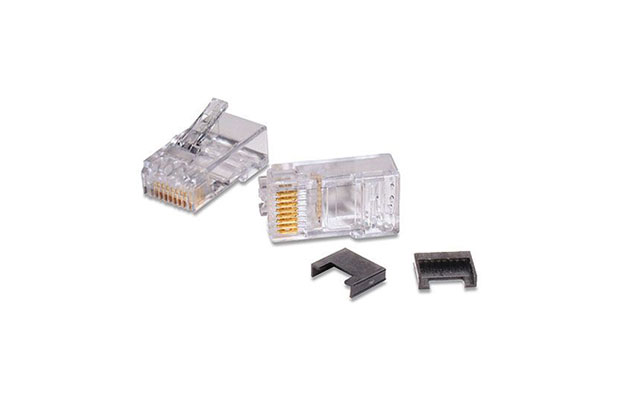

COMMSCOPE/AMP (6-569278-3) Modular Plug Connector 100 pcs (Cat 5e)
$ 55.00
$ 51.00
Part Number: 6-569278-3
Brand: COMMSCOPE/AMP
Order Now
Specification
Part Number: 6-569278-3
Brand: COMMSCOPE/AMP
Product Classification:
Portfolio: NETCONNECT®
Product Type: Modular plug
Regional Availability: Asia | Australia/New Zealand | EMEA | Latin America | North America
Dimensions:
Compatible Cable Diameter, maximum: 5.60 mm | 0.22 in
Compatible Cable Diameter, minimum: 4.80 mm | 0.19 in
Compatible Insulated Conductor Diameter, maximum: 0.990 mm | 0.039 in
Compatible Insulated Conductor Diameter, minimum: 0.860 mm | 0.034 in
Electrical Specifications:
ANSI/TIA Category: 5e
Current Rating, maximum: 0.75 A
Insulation Resistance, minimum: 500 mOhm
Safety Voltage Rating: 150 Vac
Environmental Specifications:
Operating Temperature: -10 °C to +60 °C (+14 °F to +140 °F)
Relative Humidity: Up to 93%, non-condensing
Safety Standard: UL 1863
General Specifications:
Cable Type: Round, unshielded
Interface: RJ45
Package Quantity: 100
Packaging Type: Bag | Box | Carton
Positions/Loaded Contacts: 8/8
Mechanical Specifications:
Conductor Gauge, solid: 26–23 AWG
Conductor Gauge, stranded: 26–23 AWG
Conductor Type: Solid | Stranded
Contact Base Material: Phosphor bronze
Contact Plating Material: Gold
Contact Plating Thickness: 1.27 µm
Material Type: Glass filled polycarbonate
Plug Insertion Life, minimum: 750 times
Termination Type: IDC
